5-Master
On Order
Technical Specifications | |
Control and Protocols | |
Protocols | DMX-512, RDM, ArtNet, sACN, proTEC |
DMX channels | 6 |
Modes | Free |
Connections | |
Power | Neutrik powerCON TRUE1 In/Out |

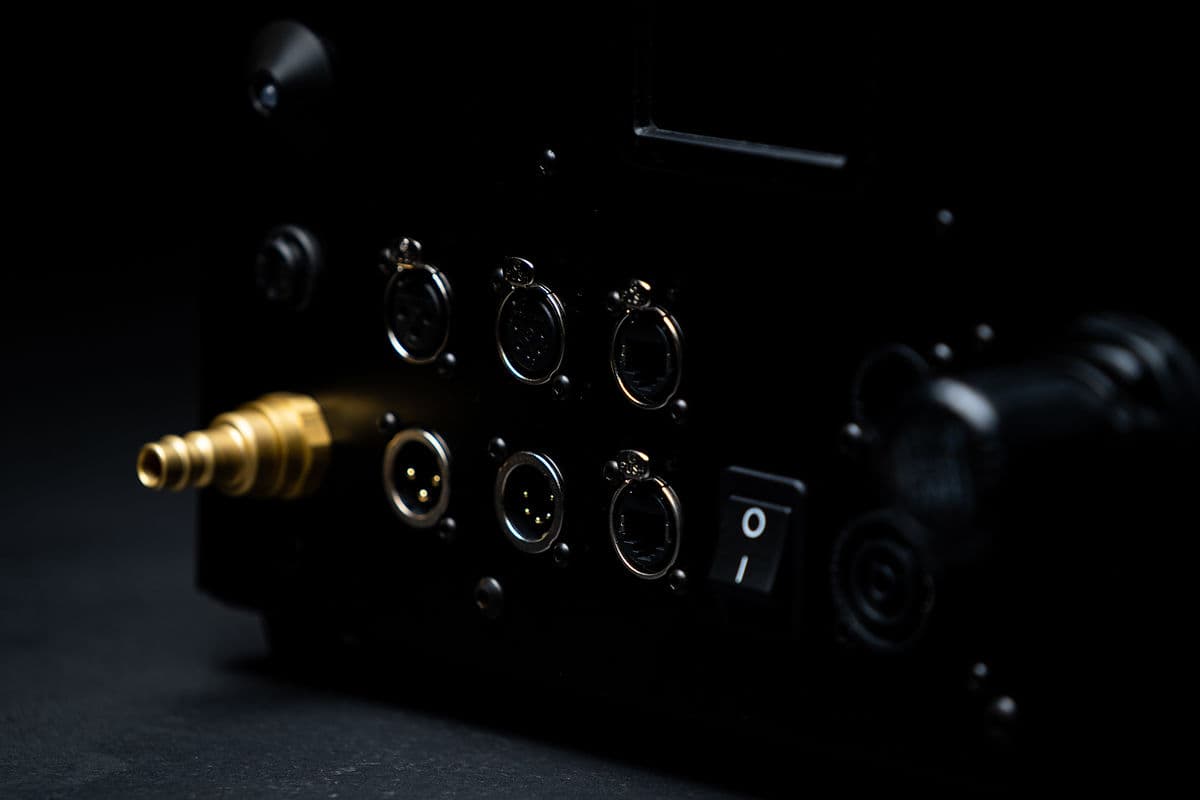

Signal | XLR 5-pin, XLR 3-pin, etherCON A/B |
Pneumatics | NW7.2M In (up to 10 bar) |
Fuel | TBF LP 006-WR013 Out |
Construction | |
Material | Stainless steel |
Protection | IP20 |
Features | Touchscreen display, web interface |
Flame | |
Height | 4–6 m |
Fuel | 5-Master Fluid |
Dimensions and weight | |
Dimensions | 360 × 464 × 637 mm |
Weight | 35 kg |

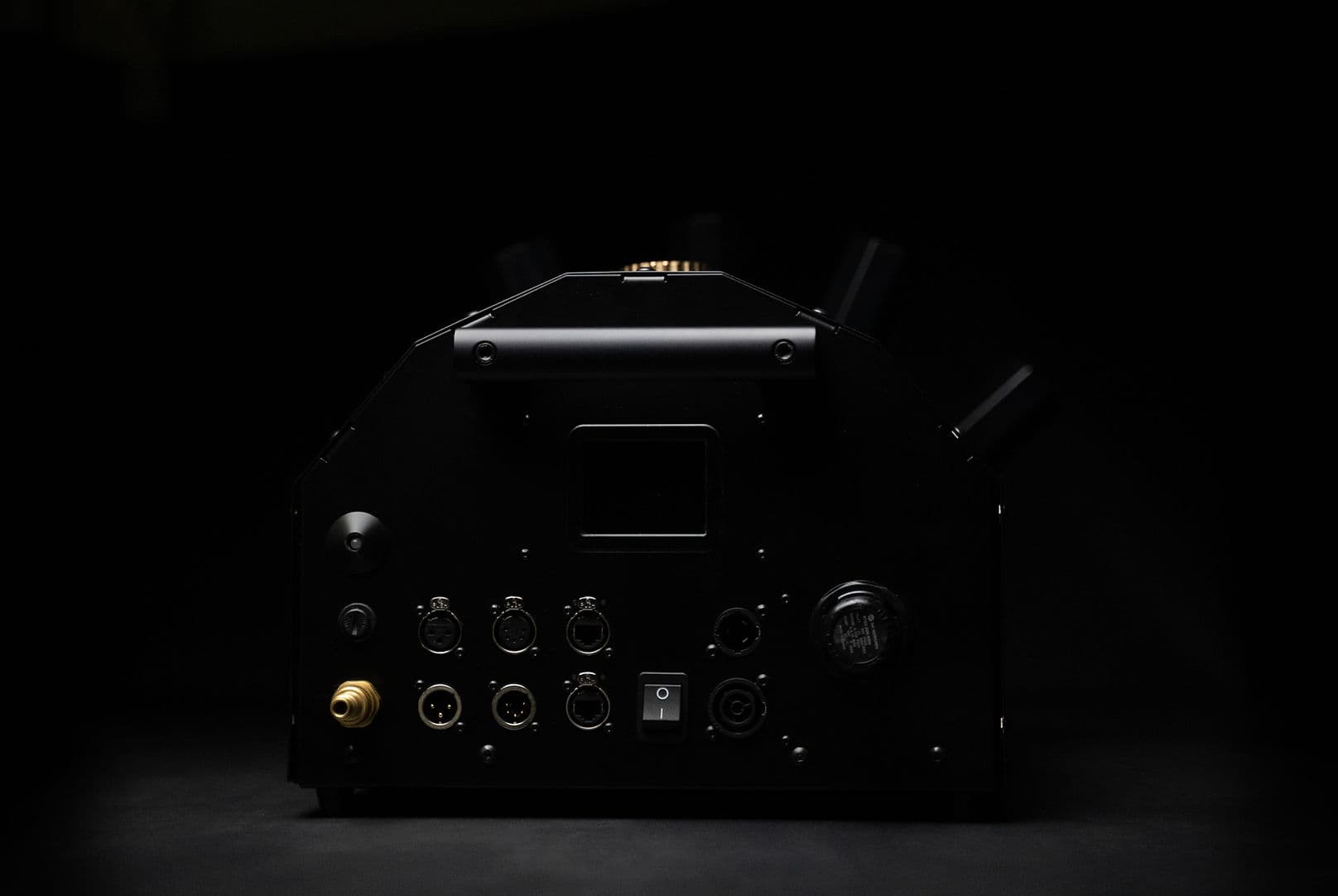

The 5-Master is a legendary system featuring five simultaneous fire jets, adapted to meet the modern demands of stage and touring installations. The device produces five individually controlled flames up to 6 meters high, with precise geometry and a stable flame output. The system operates on a special combustible liquid that meets high safety standards and is suitable for indoor use. The fuel evaporates quickly and leaves no hazardous residues, ensuring clean and stable operation. Control is achieved using compressed air or nitrogen, allowing for precise control of the effect and maintaining a consistent flame height regardless of fuel level. This is particularly important for continuous shows and synchronized scenes. Integration with the proTEC safety system, support for DMX and ArtNet, and the ability to connect an external tank make the 5-Master a versatile solution for professional stage effects and touring applications.
