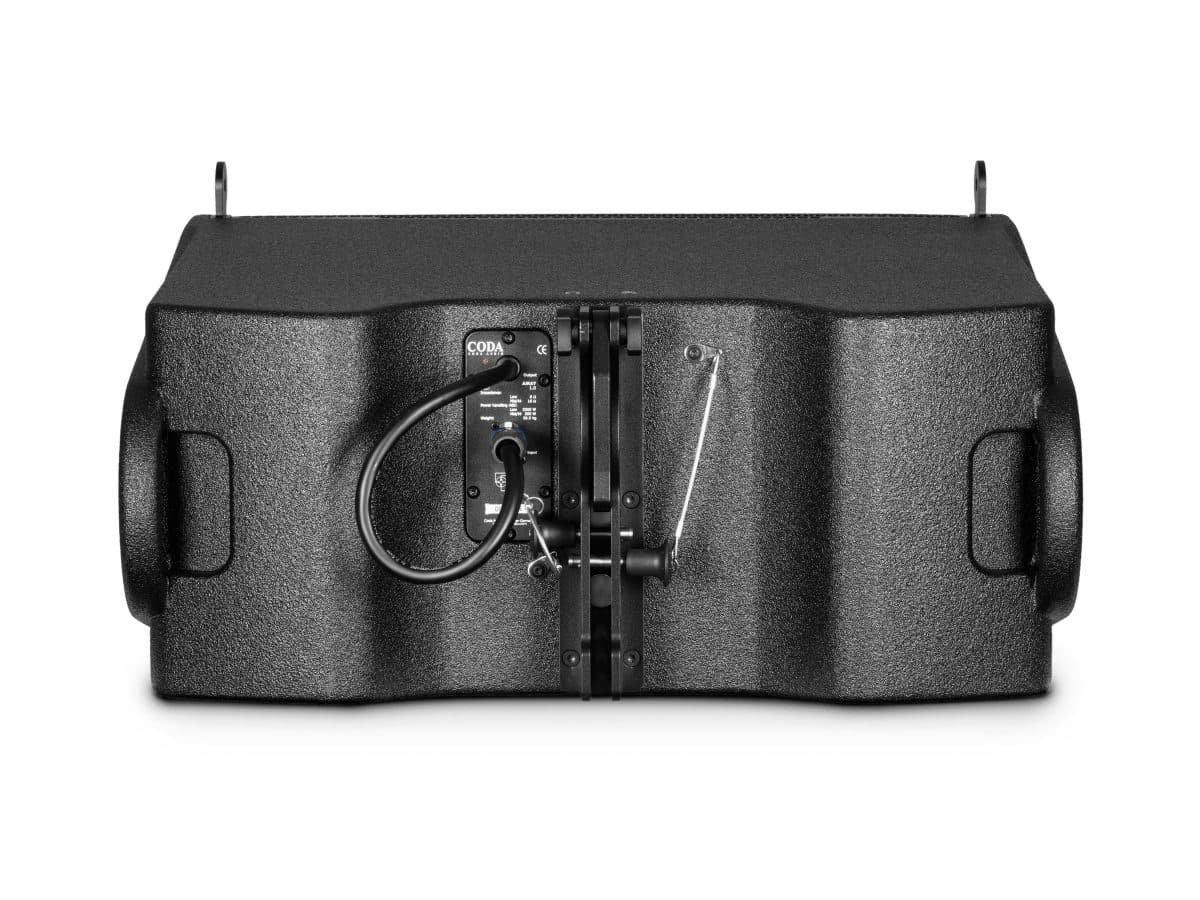

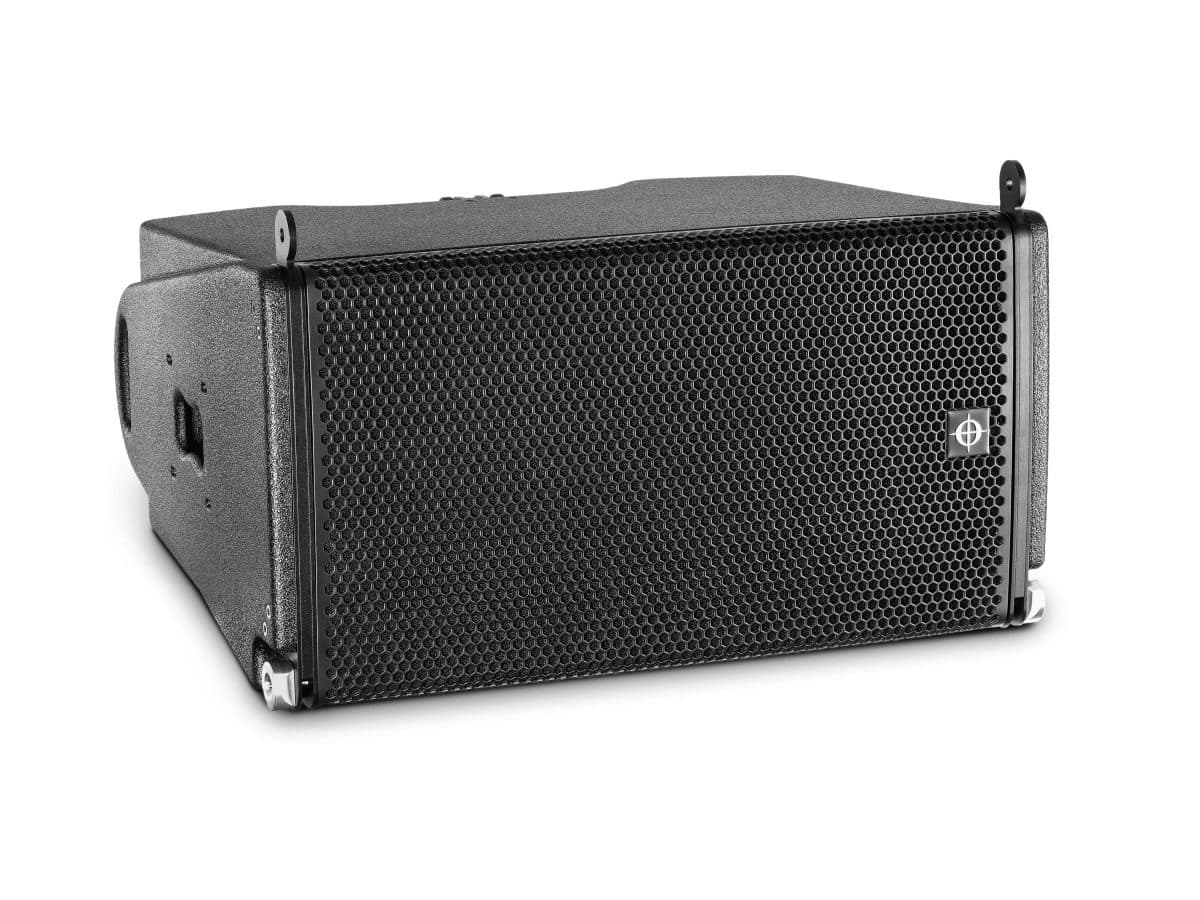

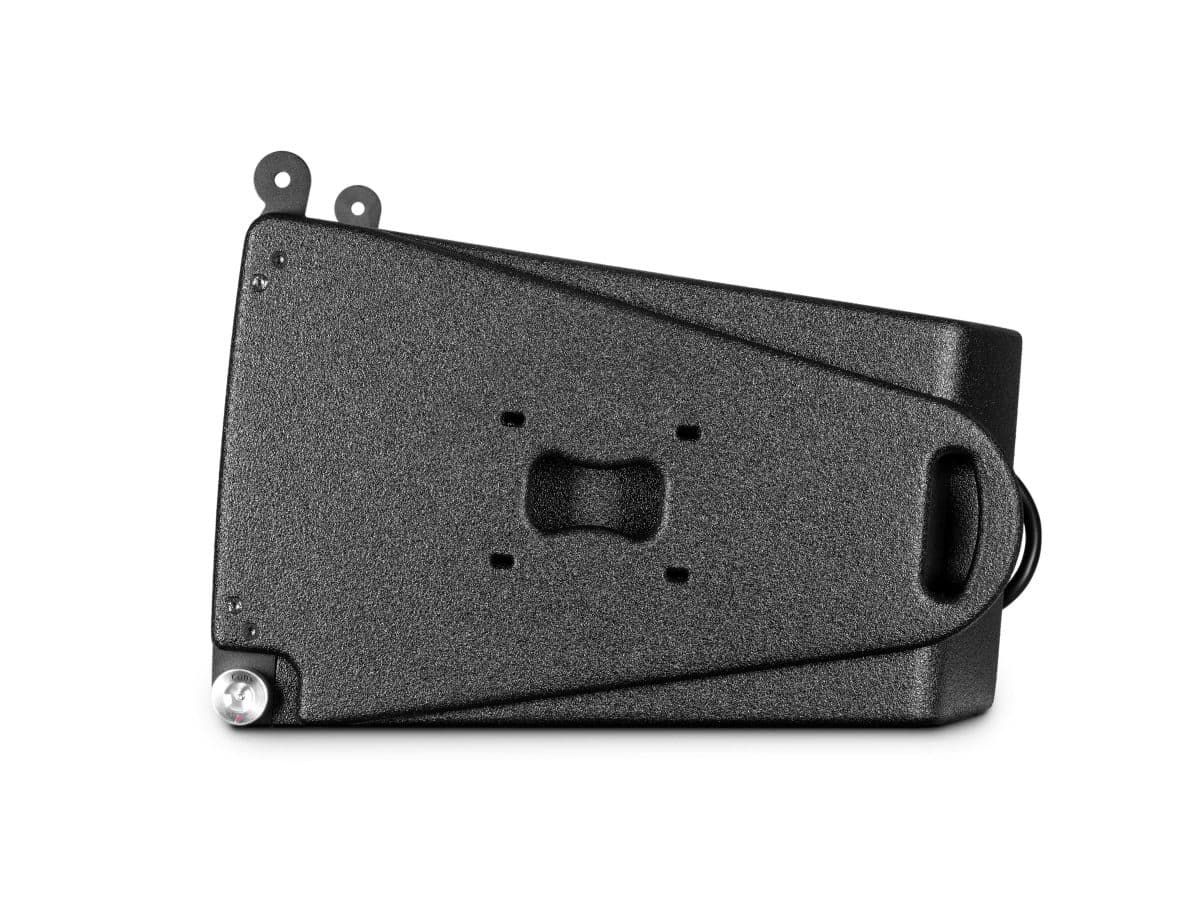

AiRAY

Technical specifications:

Frequency response: 50 Hz – 22 kHz (-6 dB)

AES / Max power handling (passive): dual amplification only

Low AES / Max: 2000 W / 8000 W

Mid/High AES/Max: 300 W / 2600 W

Maximum SPL (with LINUS14):* 149 dB(A)

Horizontal dispersion: 90°, 120°, or asymmetrical 105°

Vertical dispersion: depending on the array: 0°, 0.5°, 1°, 2°, 2.5°, from 3° to 8° in 1° increments

Low frequency: 2x 12″ neodymium, water-resistant cones, 4″ (101.6 mm) voice coil, 1000 W (AES) each

Mid/high frequencies: 2x 6″ DDP (dual-diaphragm flat-wave driver)

Midrange: 3.5-inch (90 mm) voice coil, 150 W (AES) each

High: 1.75-inch (44.4 mm) voice coil, 80 W (AES) each

Crossover point: 400 Hz bi-amp, 6300 Hz passive

Input connectors: 2x Neutrik™: 1x NLT4M + 1x NLT4FX Link cable

Nominal impedance (LF/MF+HF): 8 Ω (1+/1-) / 16 Ω (2+/2-)

Mounting: integrated suspension system

IP rating (IEC 60529): IP54

Weather protection options: IP55 standard: IP55 (Amphenol connectors)

MG1 (Marine Grade 1): IP55

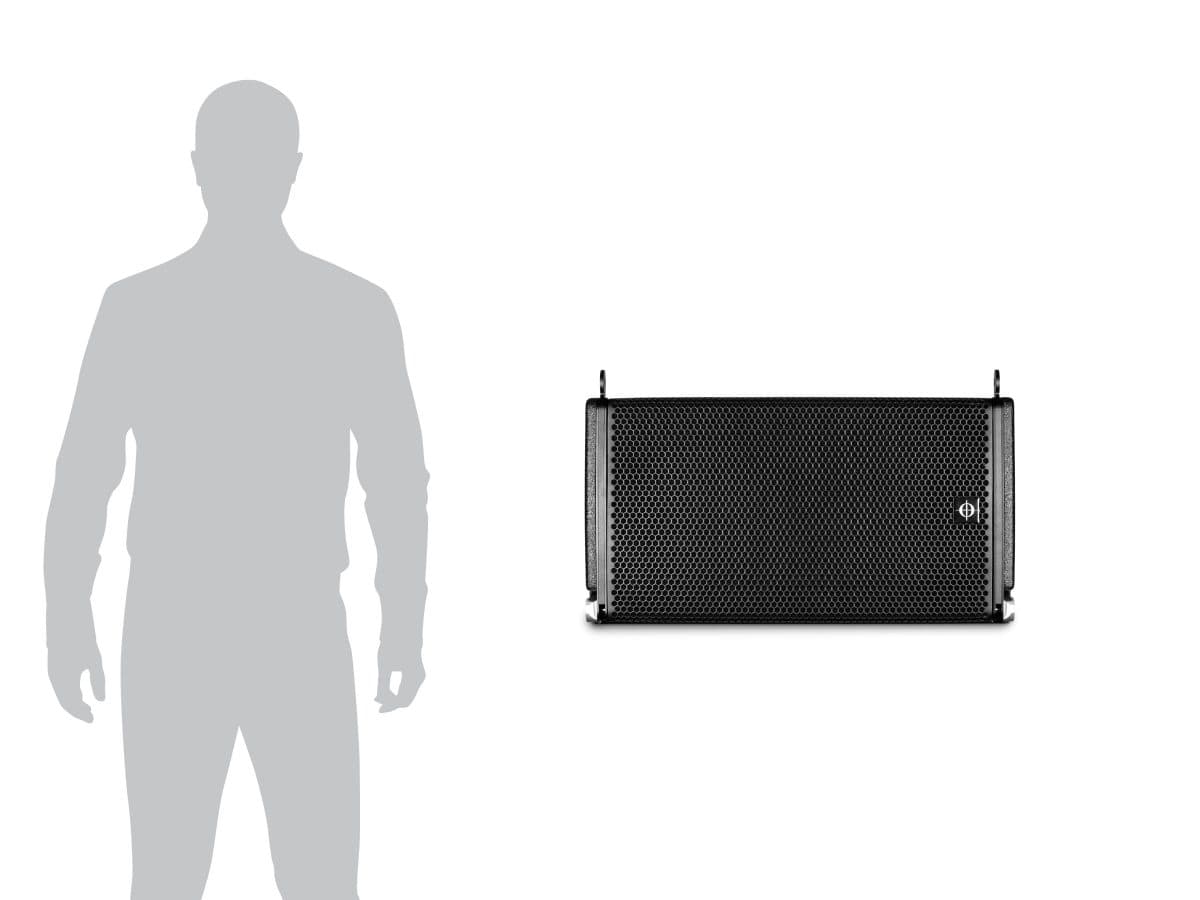

Dimensions (WxHxD): 674 x 356 x 555 mm / 26.54 x 14.02 x 21.85 inches

(674 x 400 x 555 mm / 26.54 x 15.75 x 21.85 inches including equipment)

Net weight: 40 kg / 88.18 lbs
