Antari AF-4 wind generator for stage effects and filming
1 / 3
Technical Specifications
| Supply voltage: | US model — AC 100–120 V, 50/60 Hz, 1.0 A; EU model — AC 220–240 V, 50/60 Hz, 0.5 A |
| Rated power: | 100 W |
| Operating temperature range: | 0°C – 40°C (32°F – 104°F) |
| Airflow: | 1187 CFM (AC 110V / 60 Hz); 1035 CFM (AC 220V / 60 Hz) |
| Fan speed: | 1242–1480 rpm (AC 110V / 60 Hz); 1175–1289 rpm (AC 220V / 60 Hz) |
| Noise level: | 68.5 dB (maximum power) |
| Number of DMX channels: | 1 |
| Connection interfaces: | 5-pin XLR (DMX) |
| Dimensions: | 353 × 426 × 517 mm |
| Weight, kg: | 9 |
Out of stockSKU: 6E81F6wind-fans

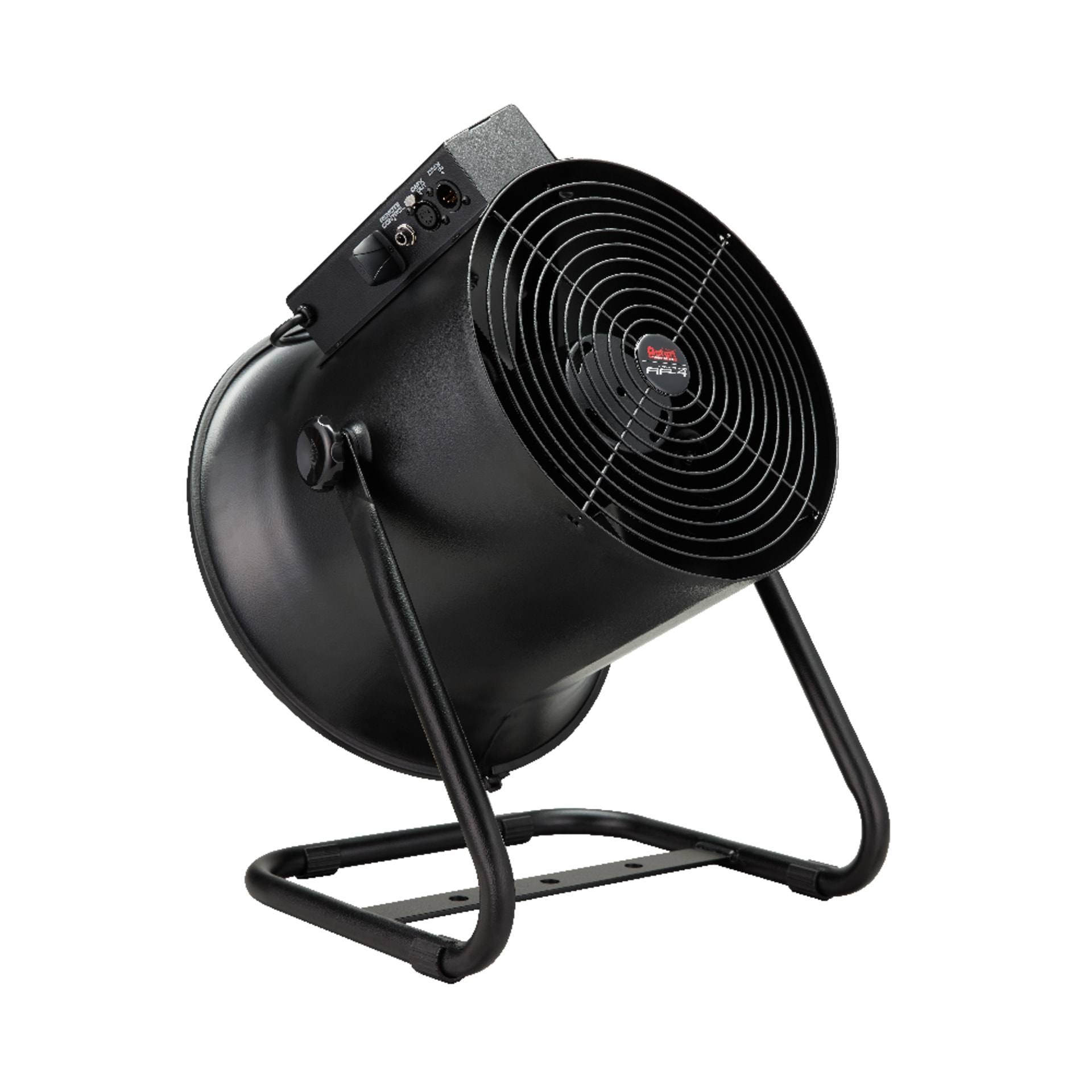

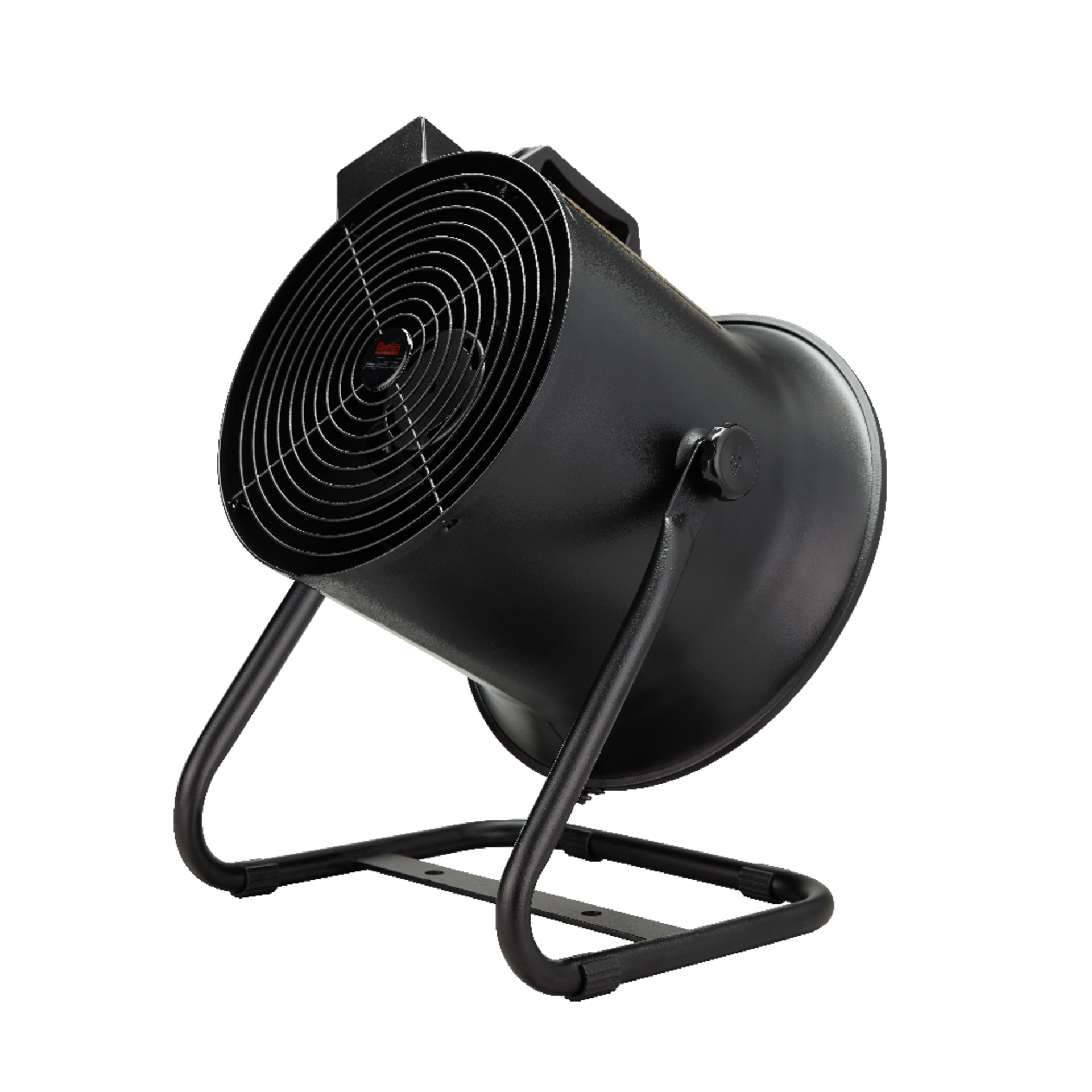

The Antari AF-4 is a high-performance stage effects fan engineered to deliver focused, high-velocity airflow across medium-to-large stage venues and studio sets.
System Features
- Focused Air Column: Aerodynamic intake and output grille channel air with minimal lateral turbulence.

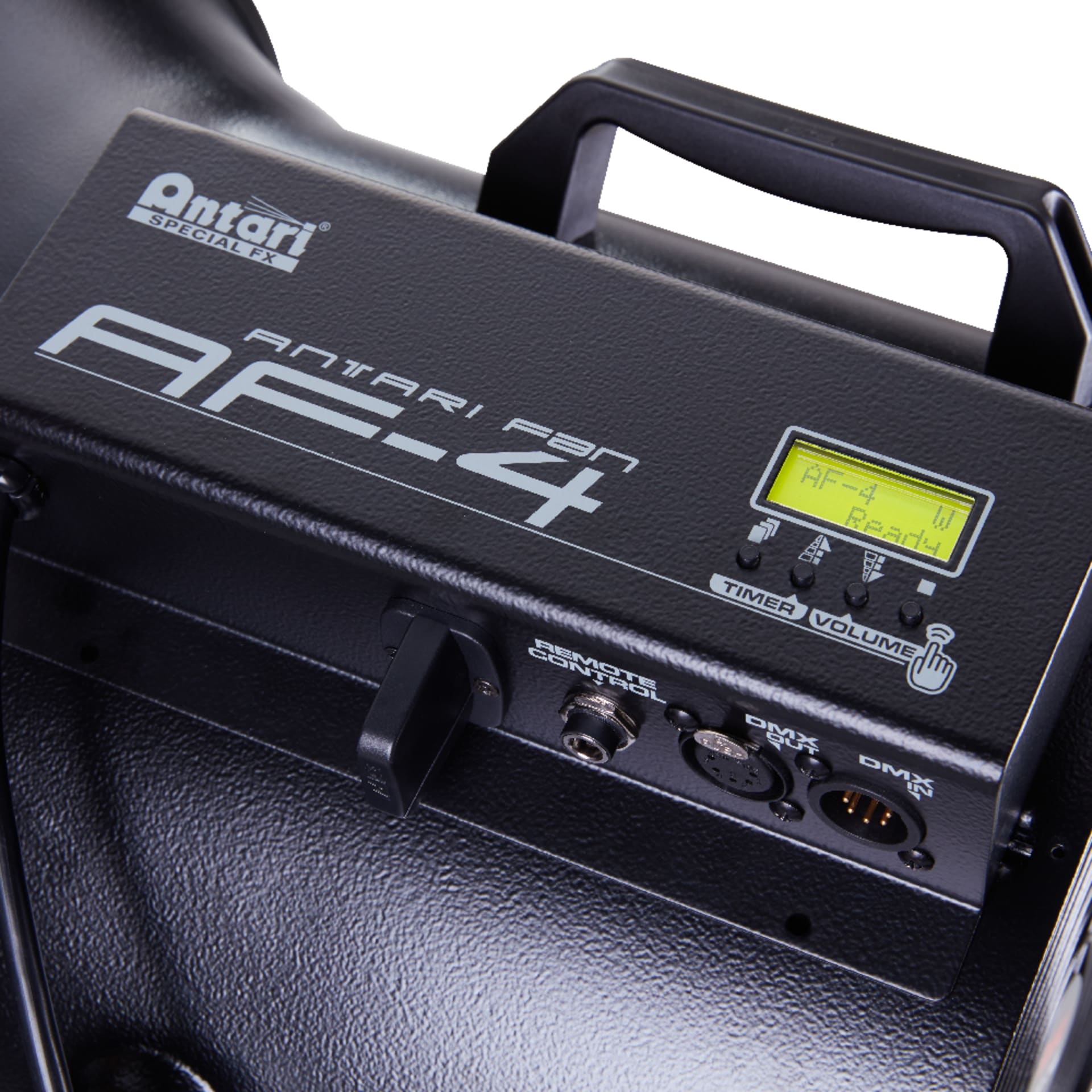

- Control Options: Manual speed potentiometer and onboard DMX512 integration.
- Sturdy Housing: Heavy-duty metal tubular frame suited for truss rigging or floor angling.
- Balanced Rotor: Precision-balanced fan blades deliver smooth, quiet operation.
Suited for concert stages, film studios, drama theaters, and broadcast facilities.
High-output touring stage fan featuring an aerodynamic grille and high-velocity airflow for concerts, film shoots, and theaters.
