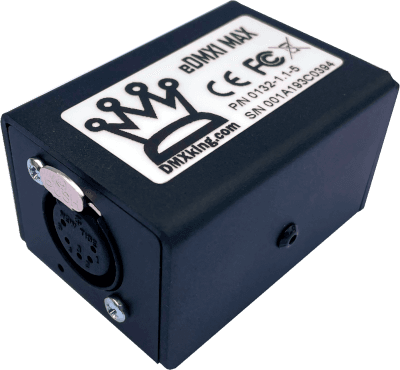

DMX Interface DMX King eDMX1 MAX

DMX Interface DMX King eDMX1 MAX 1

Technical Specifications

Ports & connectorsDurable aluminum housing
Ports & connectors 2USB-C power input
Ports & connectors 3USB DMX functionality in addition to ArtNet/sACN
Ports & connectors 41x DMX512 OUT or DMX512 IN (non-isolated)
Ports & connectors 5Combine 2 Art-Net input streams into a single output channel using HTP and LTP settings
Supported protocolsSACN priority transmission for multi-tier controllers
Ports & connectors 6Art-Net I, II, 3 & 4 + sACN/E1.31 protocol support, including universe synchronization
Network featuresStatic network or DHCP IPv4 network

Documents

eDMX1 MAX User Manual (in English)PDF
DMX King
DMX King
In StockSKU: D1F1D0Art-Net / sACN
17 668 UAH
Consultation
This compact and reliable Ethernet DMX512 hub is suitable for a wide range of applications. With power supplied via the USB-C port, there are many power supply options, as almost any USB port or USB charger/power adapter will work perfectly, including the USB ports on many wireless routers. DMX512 Output and DMX512 Input functions are supported, along with E1.20 RDM (future firmware update).
