Network Gateway ChamSys GeNetix 10Scene

1 / 5

Technical Specifications

Maximum number of supported wall plates 10	20
Contact trigger inputs	2
Network port	1
Unlocks MagicQ PC from "Demo mode"	No.
Supported PoE voltage	37-57 В
Supported PoE types	802.3af type 1, 802.3at type 2, 802.3bt type 3 and 4

Video

Documents

PostcardPDF User manualPDF 10Scene Cable SpecificationPDF Installation and configuration guidePDF

CHAMSYS

On OrderSKU: 2E6BBDGeNetix Series

30 746 UAH

Consultation

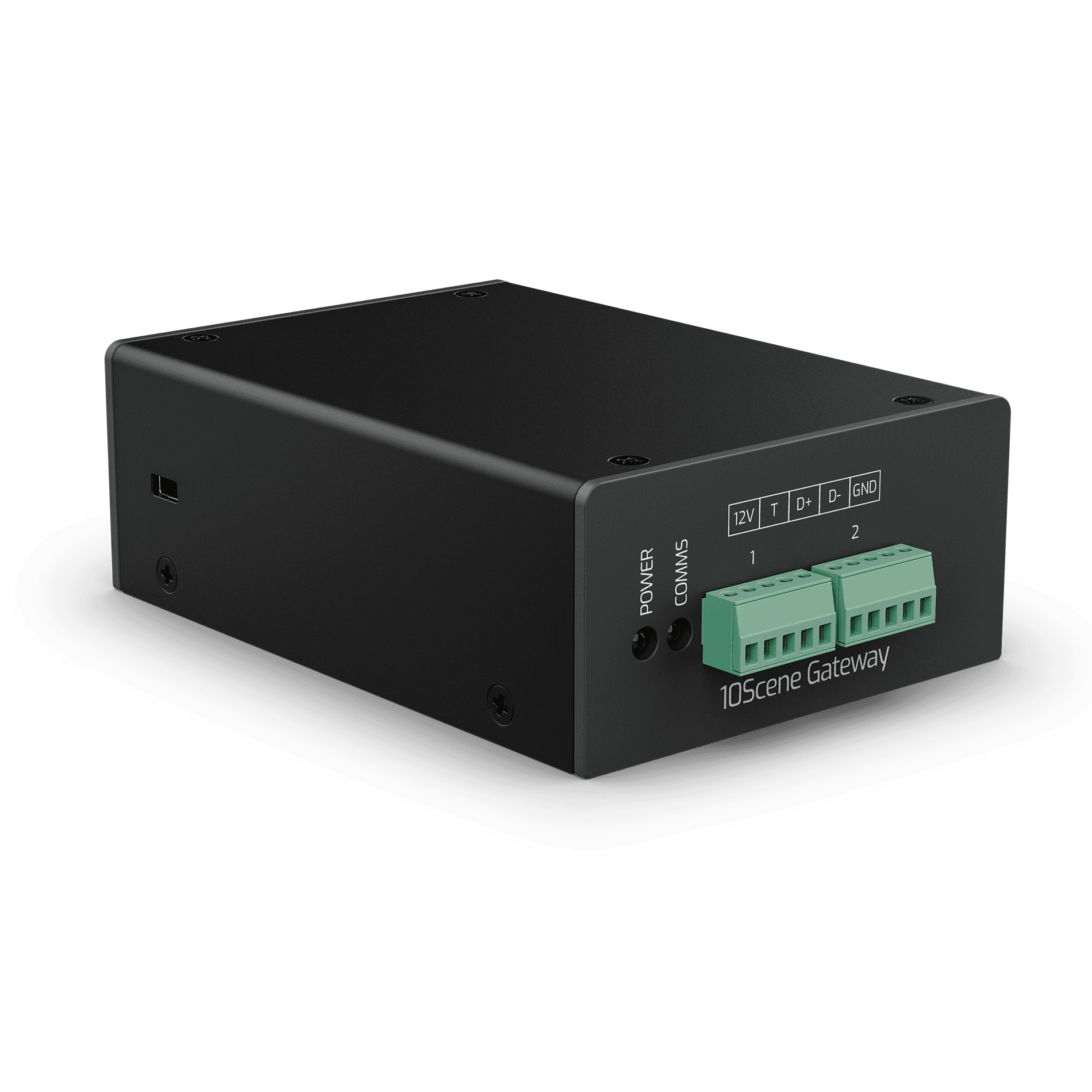

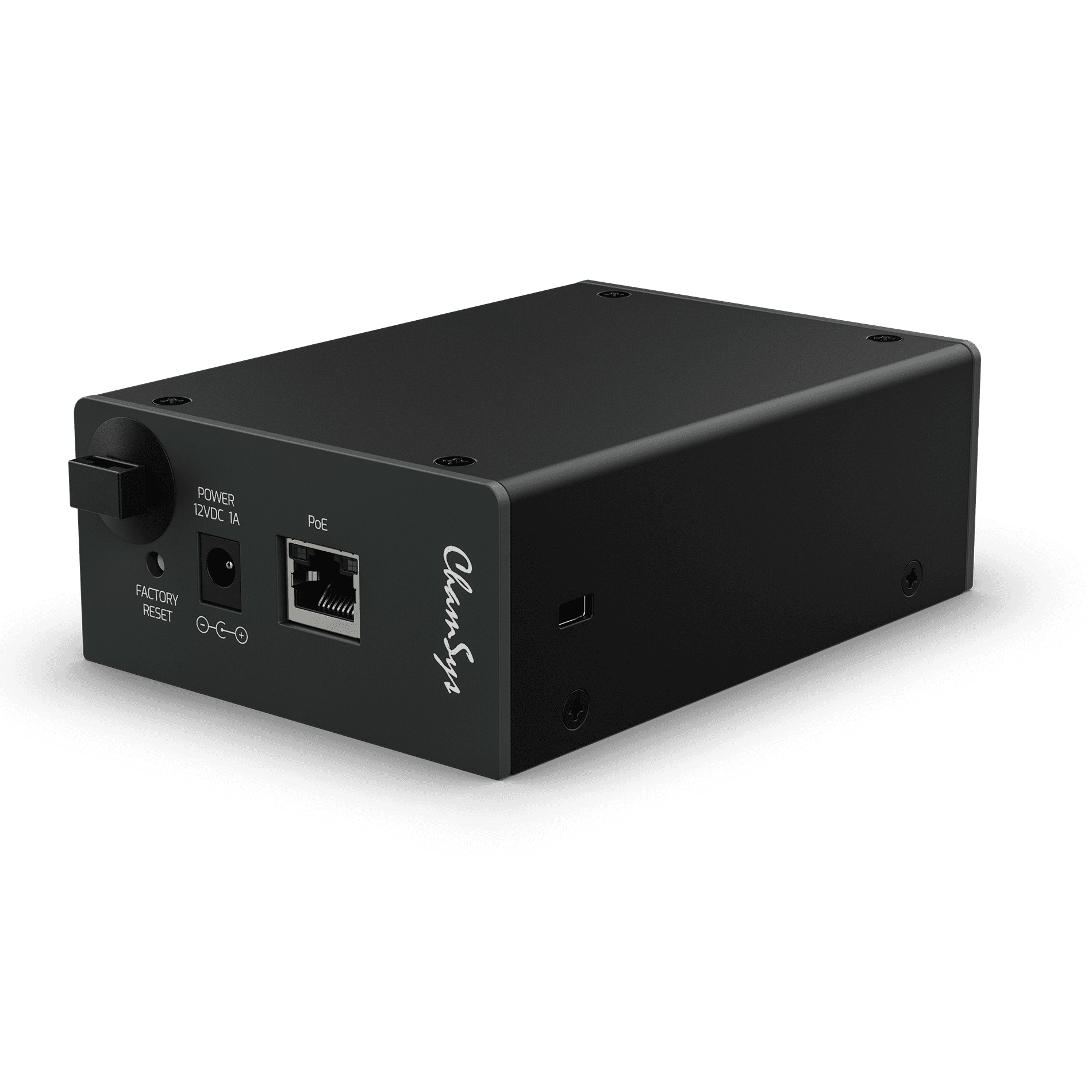

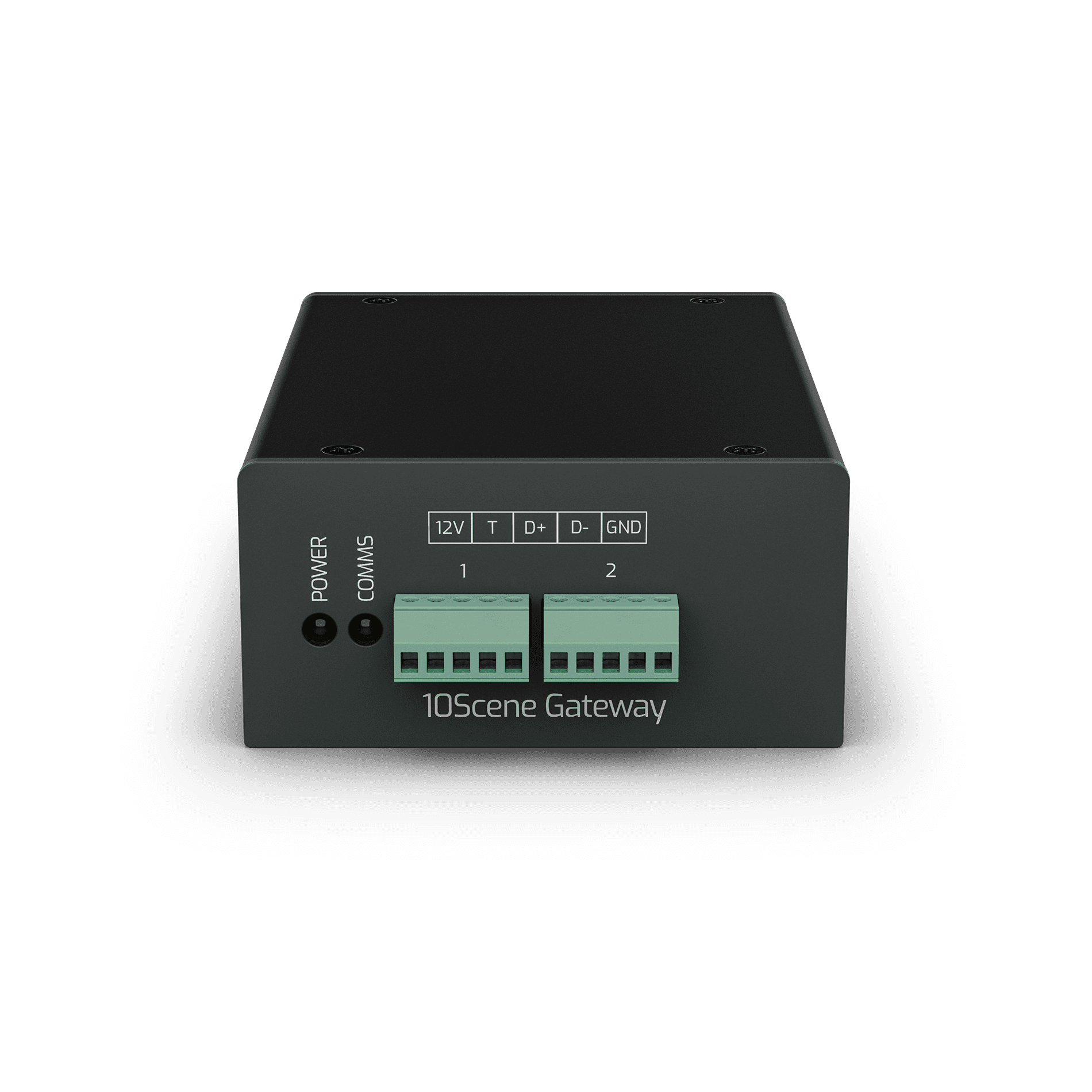

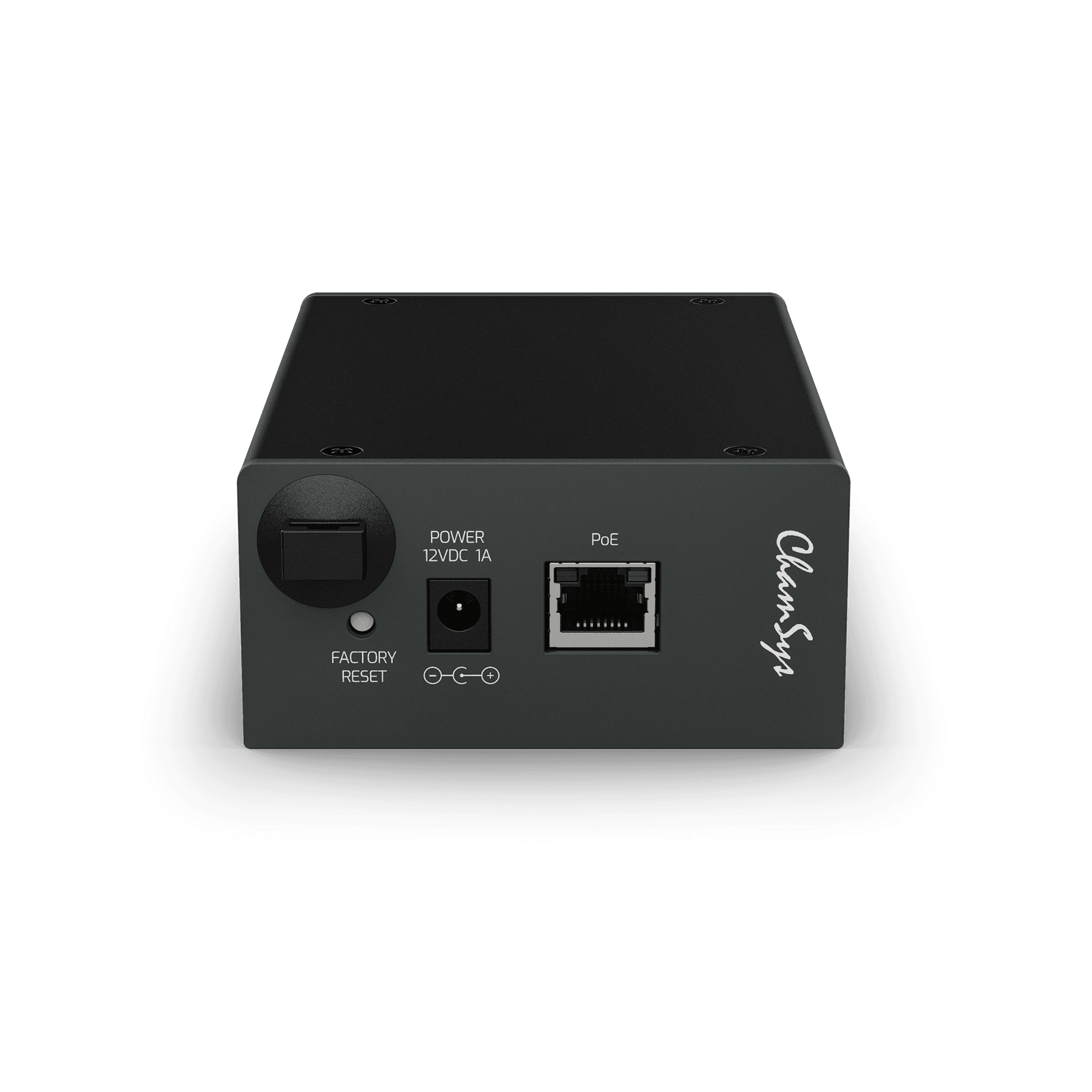

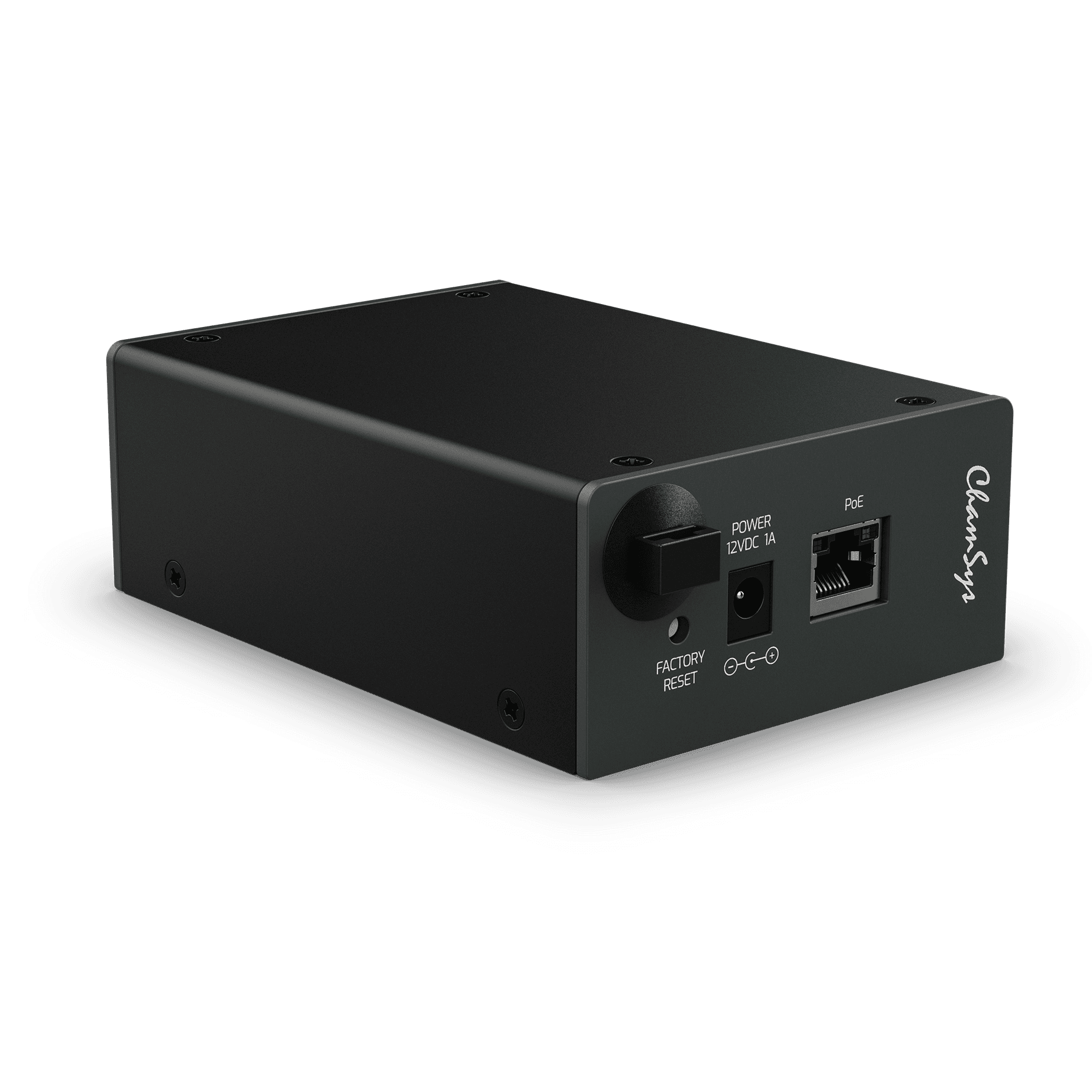

The 10Scene Gateway is an interface for connecting 10Scene wall panels to MagicQ/QuickQ systems. It converts the 10Scene remote protocol to ChamSys, allowing 10Scene Wall panels to be integrated with MagicQ and QuickQ consoles. Gateway
