Technical Specifications
| RDM Direct DMX ports | 10 |
| Network ports | 2 |
| MIDI ports | 2 (1 in, 1 out) |
| LTC Timecode ports | 2 (1 in, 1 out) |
| 10Scene ports | 1 |
| PoE Input | Yes (Port 1) |
| USB Ports | 1 USB-C |
| Kensington Security Lock Fixing | Yes. |
| Input power, Neutrik powerCON TRUE1 | 110 to 240 VAC |
Video
Documents

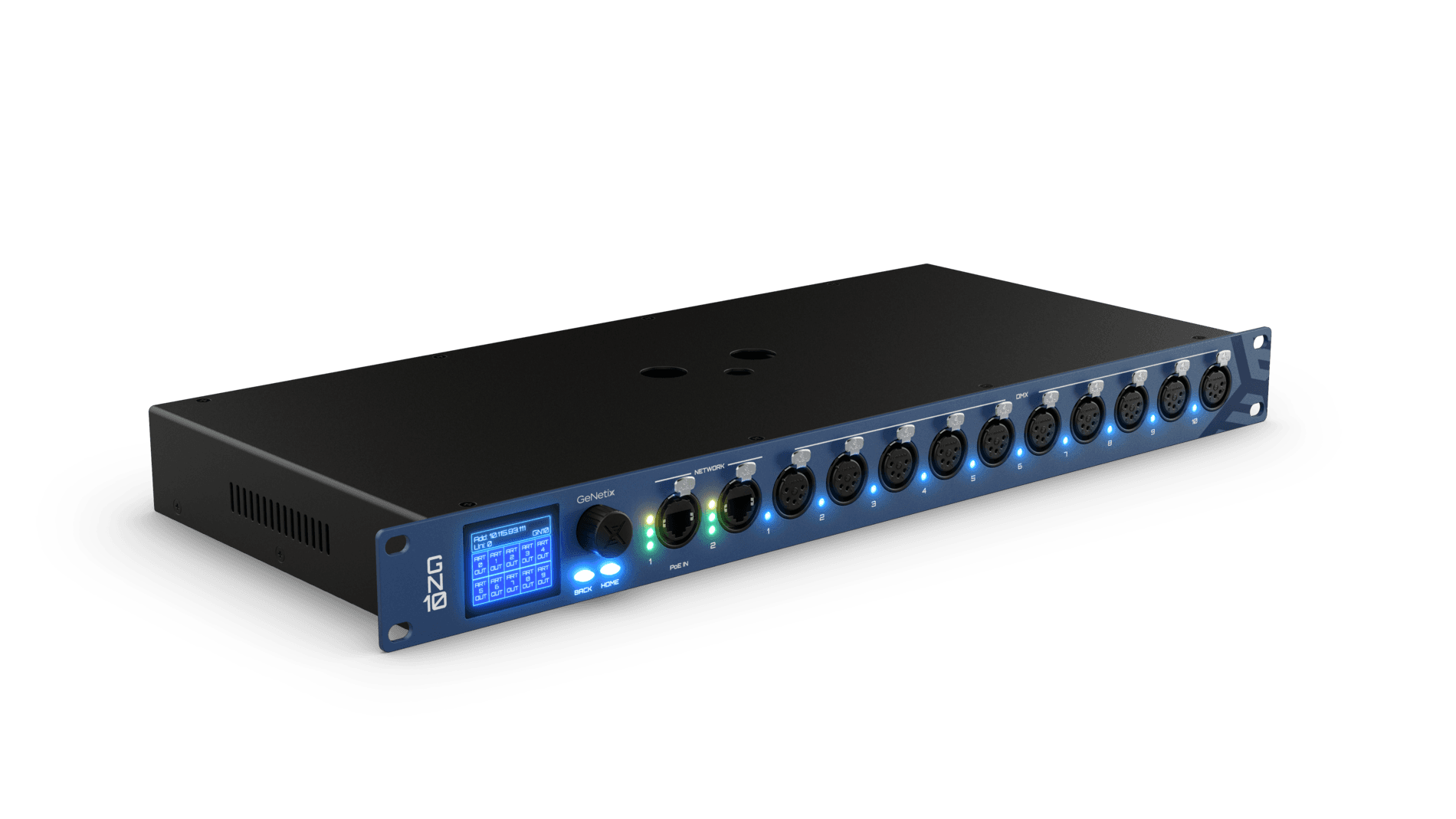

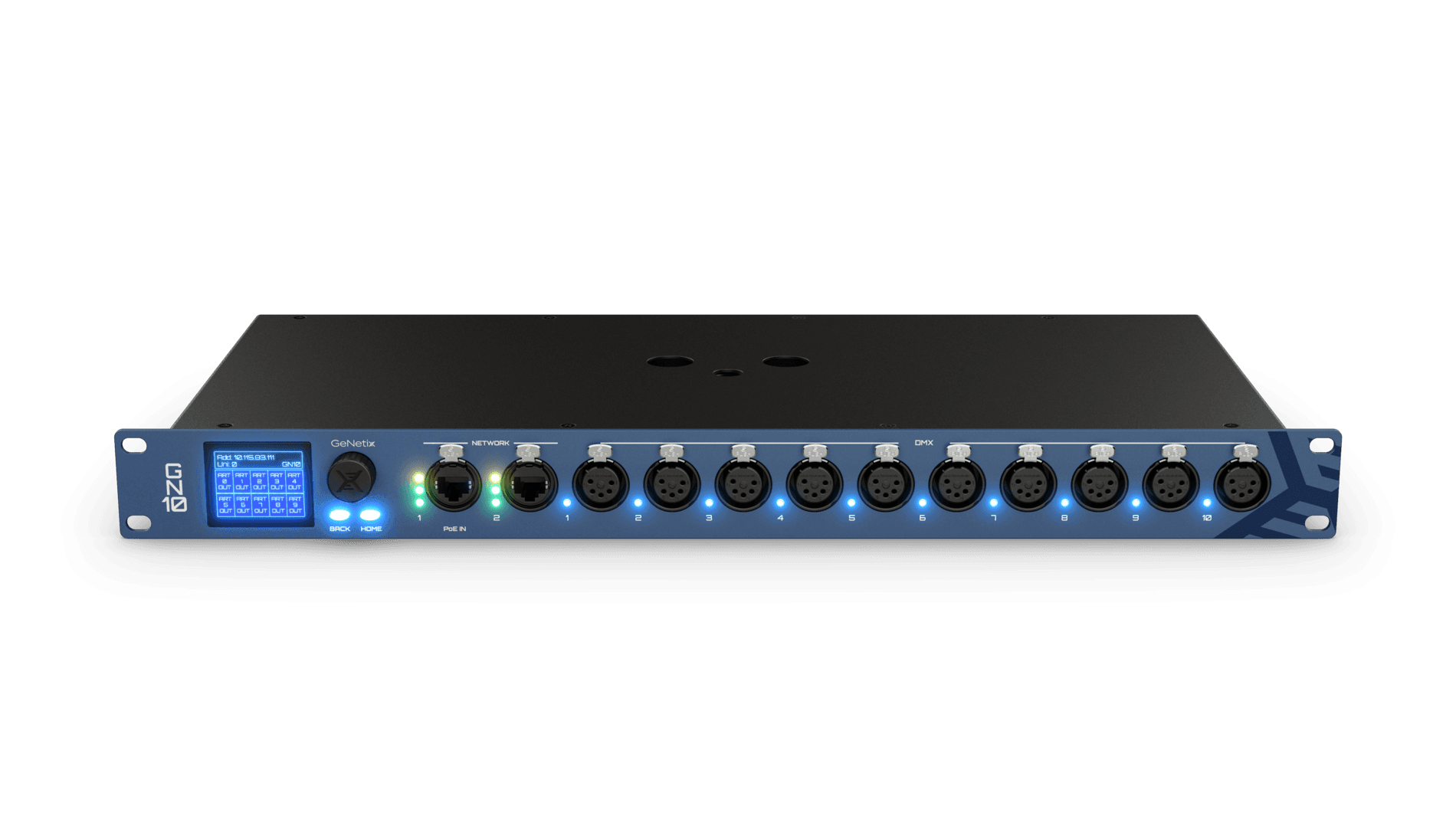

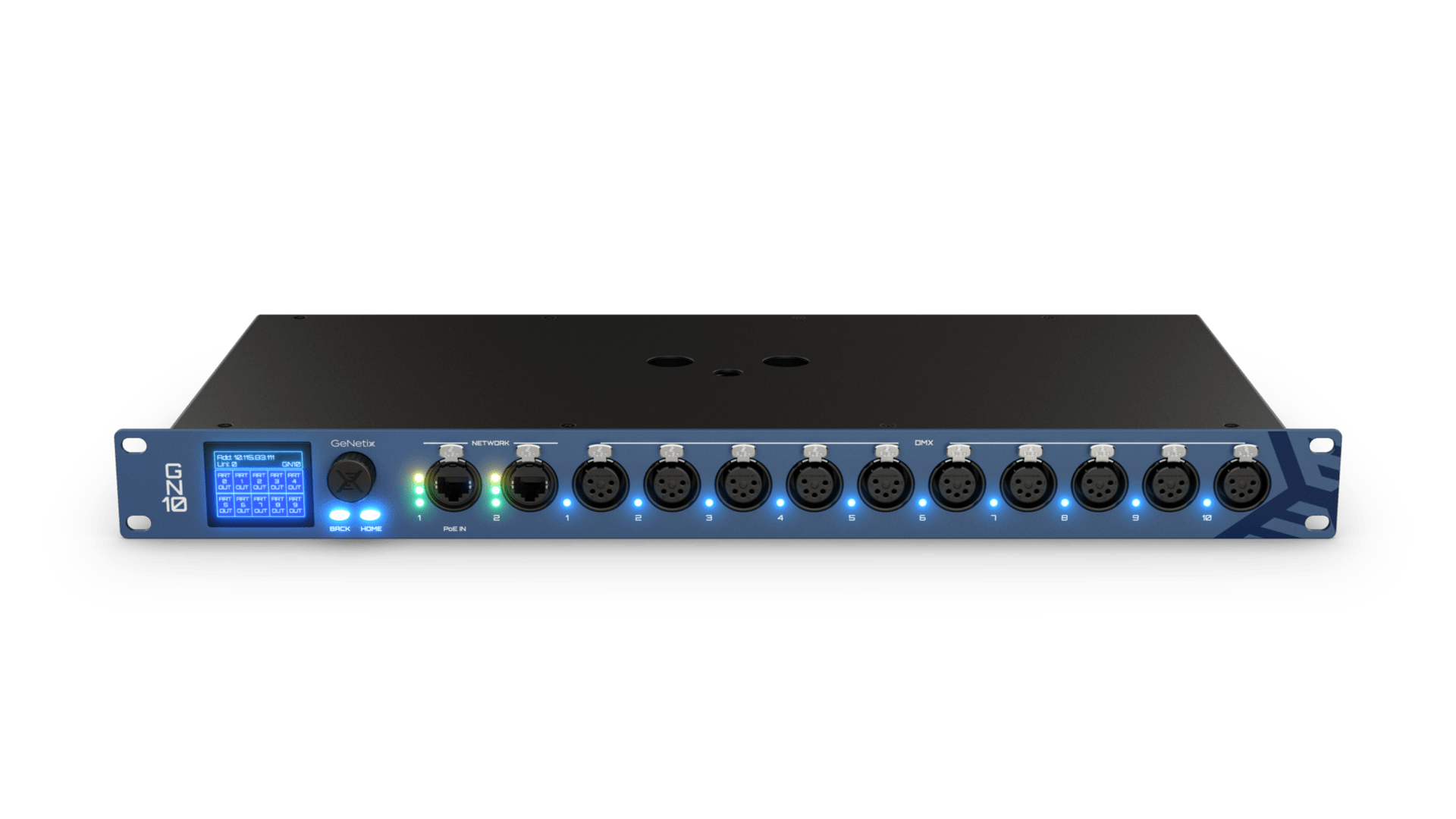

GeNetix GN10
The GeNetix Node 10 is a multifunctional network interface designed to facilitate data transmission in professional lighting systems. It is suitable for a wide range of applications, including stage installations, concert venues, and television studios.
The device supports major lighting control protocols, including ArtNet, sACN, and RDM, ensuring easy integration into modern systems. All DMX ports can be configured as inputs or outputs and feature flexible timing parameters to optimize performance.
The GeNetix Node 10 is equipped with two network ports, allowing it to be used in complex network configurations. Power can be supplied via both PoE and the network, providing flexibility during installation.
The interface supports Timecode and MIDI transmission, allowing you to synchronize lighting effects with other systems even if the signal source is located far from the main console. This makes it an effective solution for complex shows and installations.
When connected to MagicQ systems via USB, the device unlocks the software’s full functionality, allowing it to be used as a DMX interface as well as a gateway for Timecode, MIDI, and 10Scene. Unlocking multiple instances over the network is also supported.
GeNetix Node 10 is a reliable and flexible tool for professional lighting control that combines versatility, stability, and extensive integration capabilities.
