Technical Specifications
| RDM Direct DMX ports | 2 |
| Network ports | 1 (punchdown connector) |
| PoE Powered | Yes |
| Additional characteristic 1 | Available with Female or Male DMX ports. |
| Additional characteristic 2 | Available with replaceable black or white front panels |
Video
Documents
GeNetix GW20

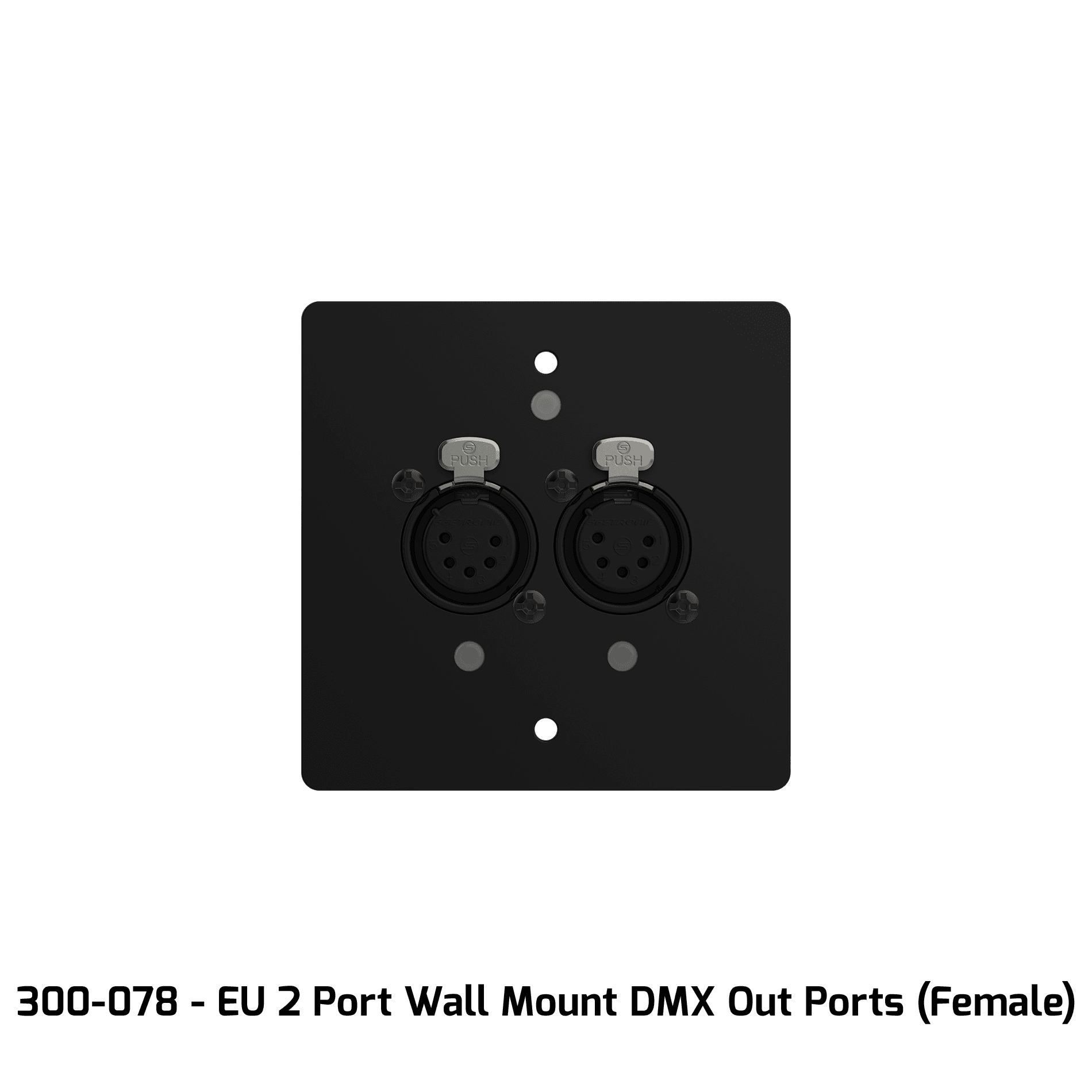

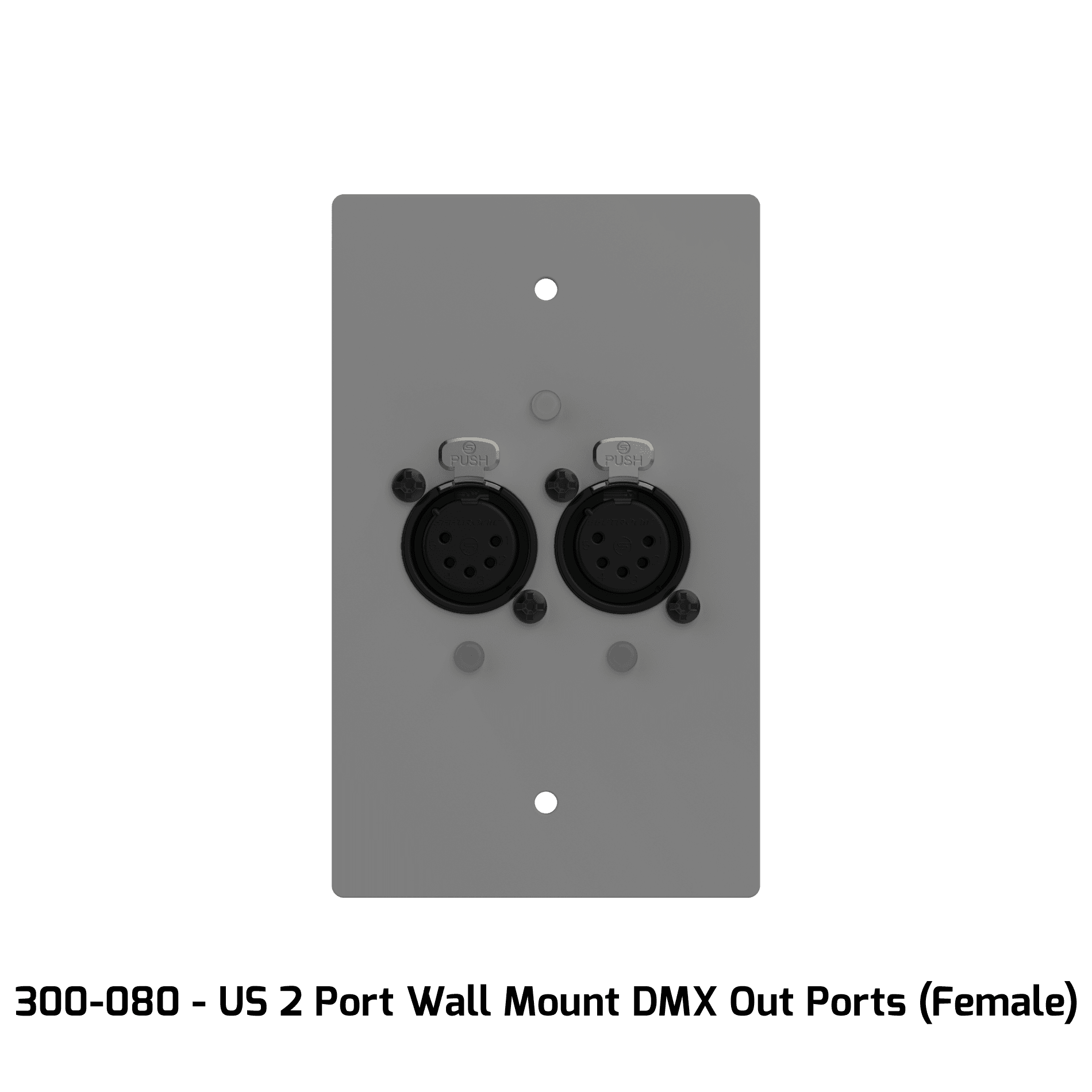

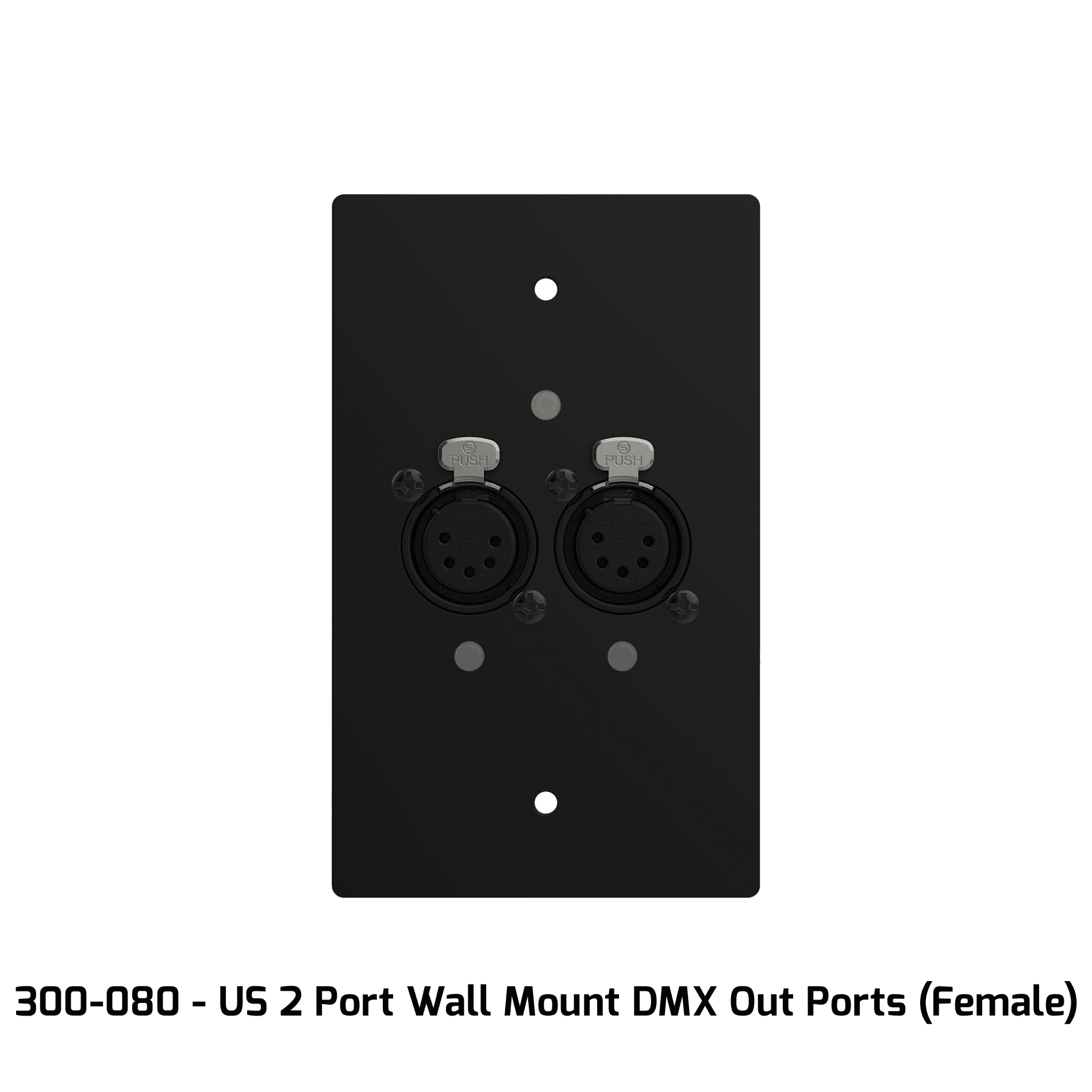

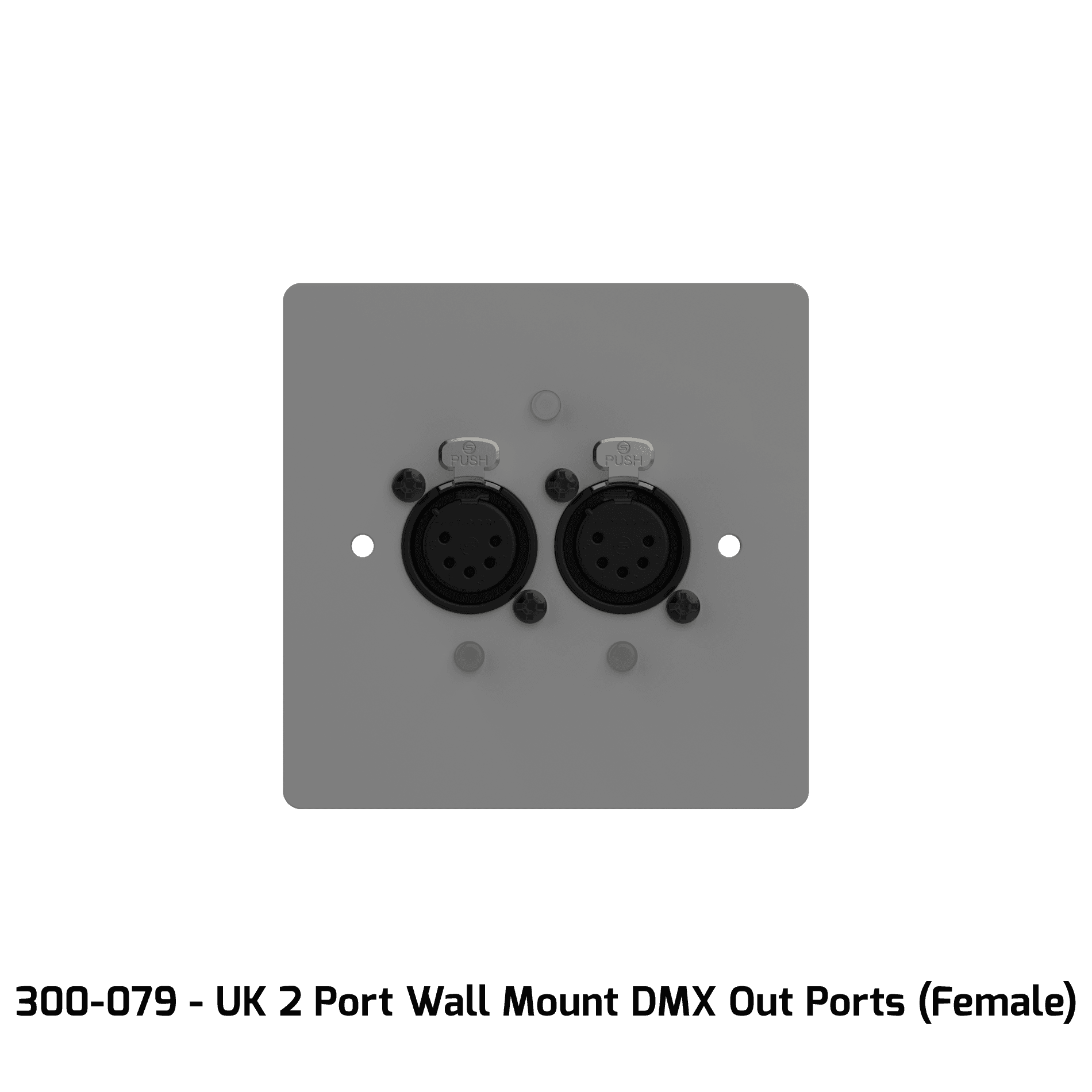

The GeNetix Wall Mount Node 2 is a convenient wall-mounted interface designed for integration into fixed lighting systems. It fits into standard European, American, and British-style junction boxes, ensuring easy integration into any space.
The device is equipped with two DMX ports that can function as either inputs or outputs, providing flexibility in system configuration. Options with different connector types are available, allowing you to choose the optimal solution for a specific installation.
Support for ArtNet and sACN protocols allows the device to be integrated into modern networked lighting control systems. Power over Ethernet (PoE) simplifies installation since it does not require a separate power source.
Device configuration can be performed via a lighting console, the built-in web interface, or over the network, ensuring convenient control.
The GeNetix Wall Mount Node 2 is the ideal solution for theaters, studios, conference rooms, and other venues where a reliable, fixed lighting control system is required.
