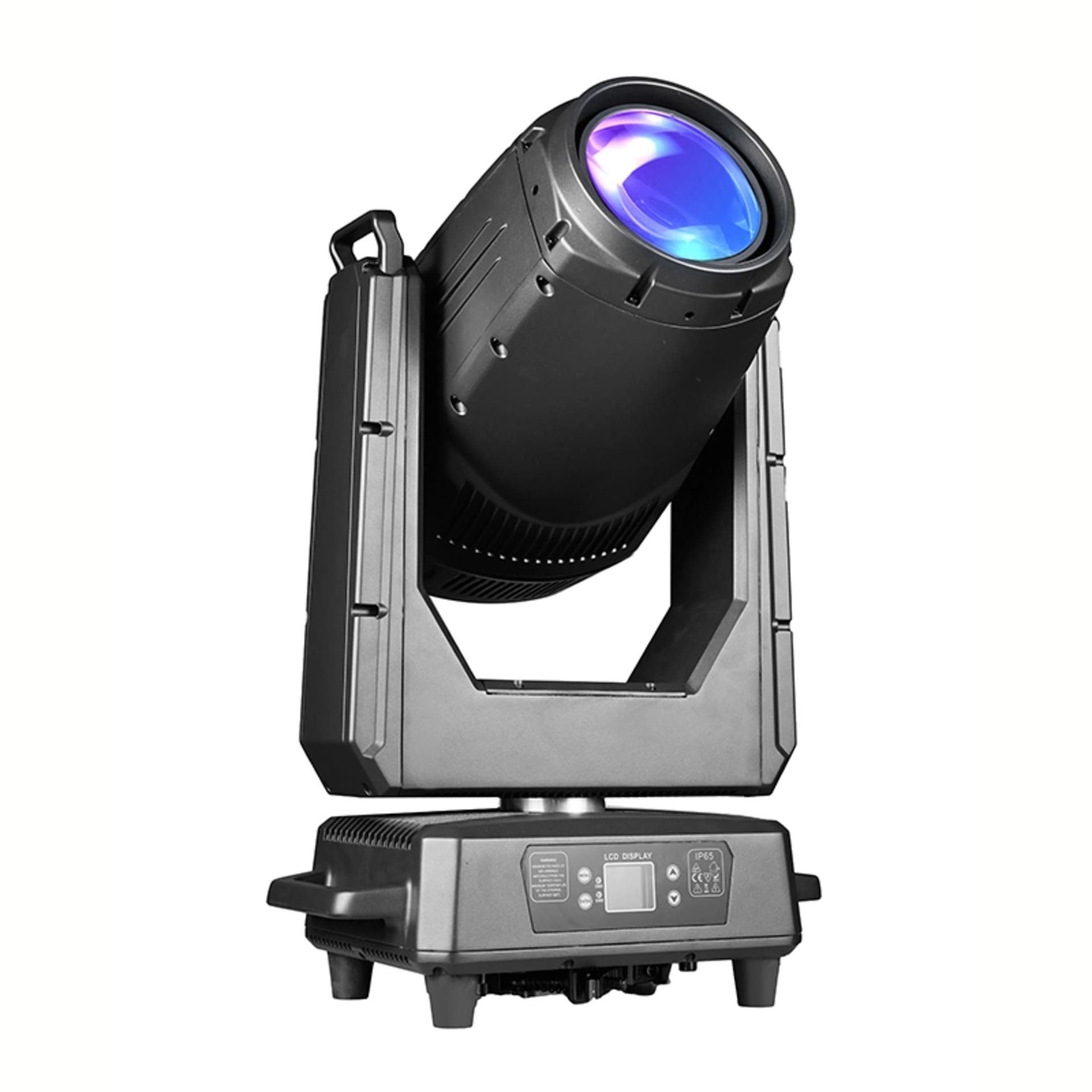

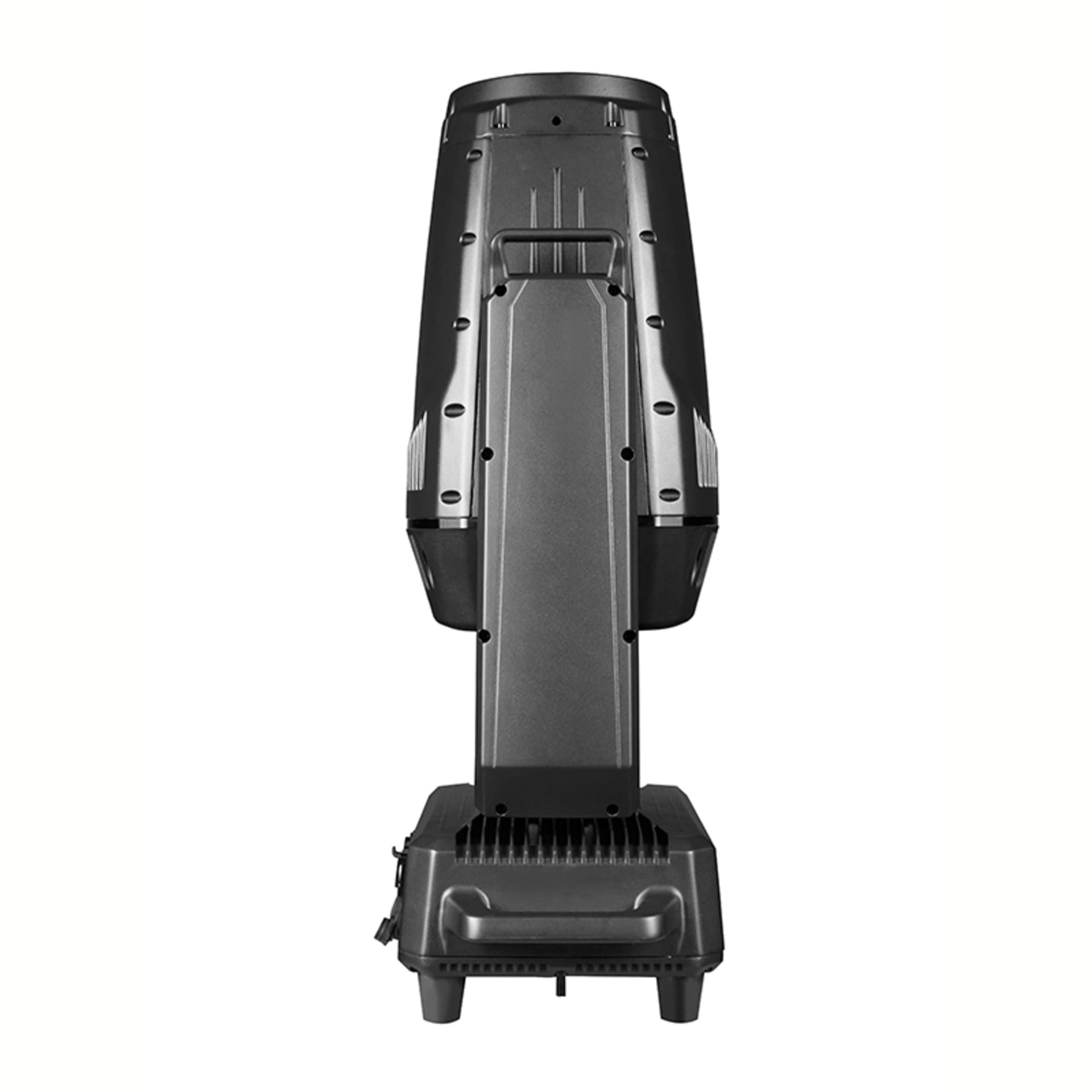

Grand Master Light GM-L ALED BSW 600 CMY IP Moving Head (IP65)
Technical Specifications
| Fixture Type | All-Weather 3-in-1 Hybrid (Beam / Spot / Wash) LED Moving Head |
| Ingress Protection Rating | IP65 (Weatherproof & Dustproof) |
| Light Source | Imported new LED Module Engine 600W |
| LED Lifespan | 20,000 hours |
| Color Temperature | 8000K |
| Color Rendering Index (CRI) | CRI > 85 |
| Illuminance | 12,000 lux @ 15m |
| Optical Zoom | 3°–45° motorized linear zoom |
| Focusing | Linear electronic focus from 4m to 50m |
| Color Mixing | Linear subtractive CMY + linear CTO system |
GM-L ALED BSW 600 CMY IP is a high-output IP65-rated all-weather hybrid 3-in-1 automated luminaire (Beam / Spot / Wash) engineered for heavy-duty outdoor festival stages, stadium concerts, and architectural open-air spectacles.
Constructed from a rugged magnalium (magnesium-aluminum) alloy chassis, it delivers true IP65 waterproof, dustproof, and corrosion-resistant operation while maintaining a nimble weight of just 23 kg. At its core is an imported 600W LED module engine calibrated to 8000K with a broadcast-friendly CRI > 85, outputting 12,000 lux at a distance of 15 meters. The precision motorized zoom system spans 3° to 45°, effortlessly shaping piercing aerial beams, crisp textured gobo projections, and smooth, uniform stage washes.
Color reproduction is governed by a seamless subtractive linear CMY system and linear CTO color temperature correction, reinforced by an 8-slot fixed dichroic color wheel with split-color capability. The projection module combines an 11-slot fixed gobo wheel and an 8-slot rotating glass gobo wheel. Multi-dimensional volumetric aerial effects are produced via two independently rotatable prisms (8-facet circular and 6-facet linear) alongside a dedicated frost atomization filter.
Precision 16-bit Pan (540°) and Tilt (270°) motors ensure rapid and whisper-smooth positioning. Waterproof connectivity features Seetronic PowerCON TRUE1 in/out and IP-sealed DMX XLR in/out (23-channel mode).
