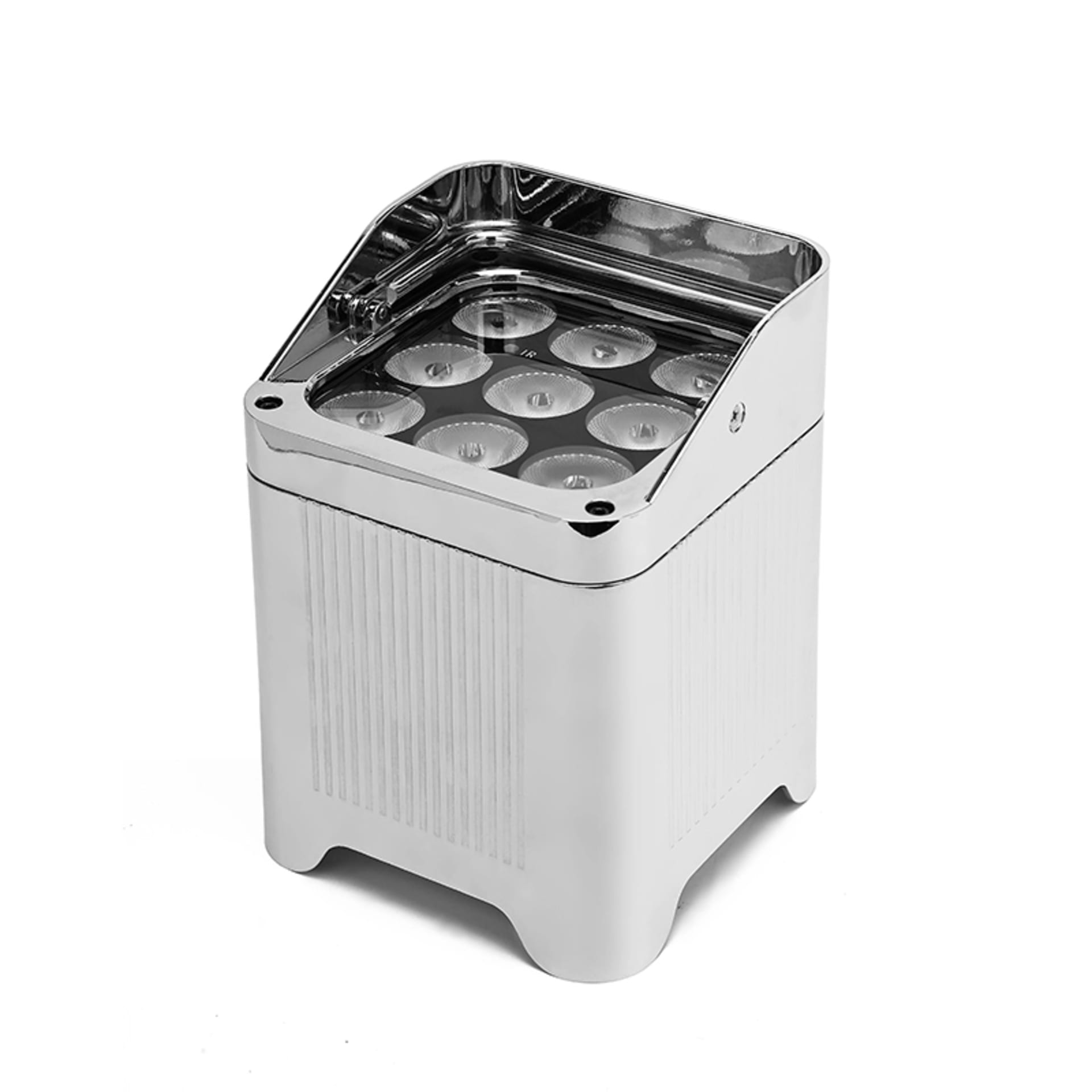

Grand Master Light GML CORE B9S IP Wireless Charging Battery LED PAR Light
Technical Specifications
| Fixture type | Wireless charging battery-powered LED PAR light |
| Ingress protection | IP65 |
| Light source | 9 × 20W RGBWALC LEDs (6-in-1) |
| Light source lifetime | 50,000 hours |
| Beam angle | 25° (10° / 15° / 45° optional) |
| Color temperature (CCT) | 2000K – 10000K adjustable (200K increments) |
| Housing material | All-aluminum die-cast body |
| Battery type | 18650 lithium cells, 12,000 mAh capacity |
| Battery cycle life | 500+ charge/discharge cycles |
| Charging methods | Teapot-style contact base docking and DC socket |
RGBWALC Six-Color Light Engine
The GML CORE B9S IP is built upon a 9×20W RGBWALC (Red, Green, Blue, White, Amber, Lime/Cyan 6-in-1) LED platform. Incorporating dedicated amber and lime/cyan wavelengths expands color gamut saturation and delivers smooth daylight-to-tungsten white balance. Color temperature adjusts linearly from 2000K to 10000K in precise 200K steps. Standard beam divergence is 25°, with optional optical variants available in 10°, 15°, or 45°. Emitter lifespan is rated at 50,000 operational hours.
IP65 Aluminum Housing and Dual Charging System
A full-aluminum chassis ensures passive convection thermal transfer and structural ruggedness rated IP65 against dust and weather elements. The integrated 12,000 mAh lithium battery assembly (18650 cells, 500+ cycle life) features dual-mode recharging: drop-in wireless base charging via a Teapot-style docking system or direct DC socket connection. Recharge is completed within 5 hours. Operational duration delivers 3 hours with all RGBALC channels fully driven, extending up to 12 hours in single-color static operation.
BMS Battery Architecture and Wireless Control
An updated Battery Management System (BMS) provides real-time remaining operating time calculation displayed directly on the OLED touch interface. Configurable runtime profiles include MAX, 4, 6, or 8-hour limiting modes. Control protocols feature integrated 2.4G Wireless DMX512, hardwired DMX512 (3CH/6CH/8CH/12CH), infrared remote, autonomous master/slave routines, and an iOS/Android control app. Fixture dimensions are 135 × 139 × 188 mm with a net weight of 3.2 kg.
Available modifications
| SKU | Specification / Option | Status | Price | Quantity | Action |
|---|---|---|---|---|---|
| — | GML CORE B9S IP Wireless Charging Battery LED PAR Light | On Order | 14 071 UAH | ||
| STANDARD | standart | On Order | 14 071 UAH | ||
| WIRELESS-CHARGING | CR Wireless Charging | On Order | 15 002 UAH |
