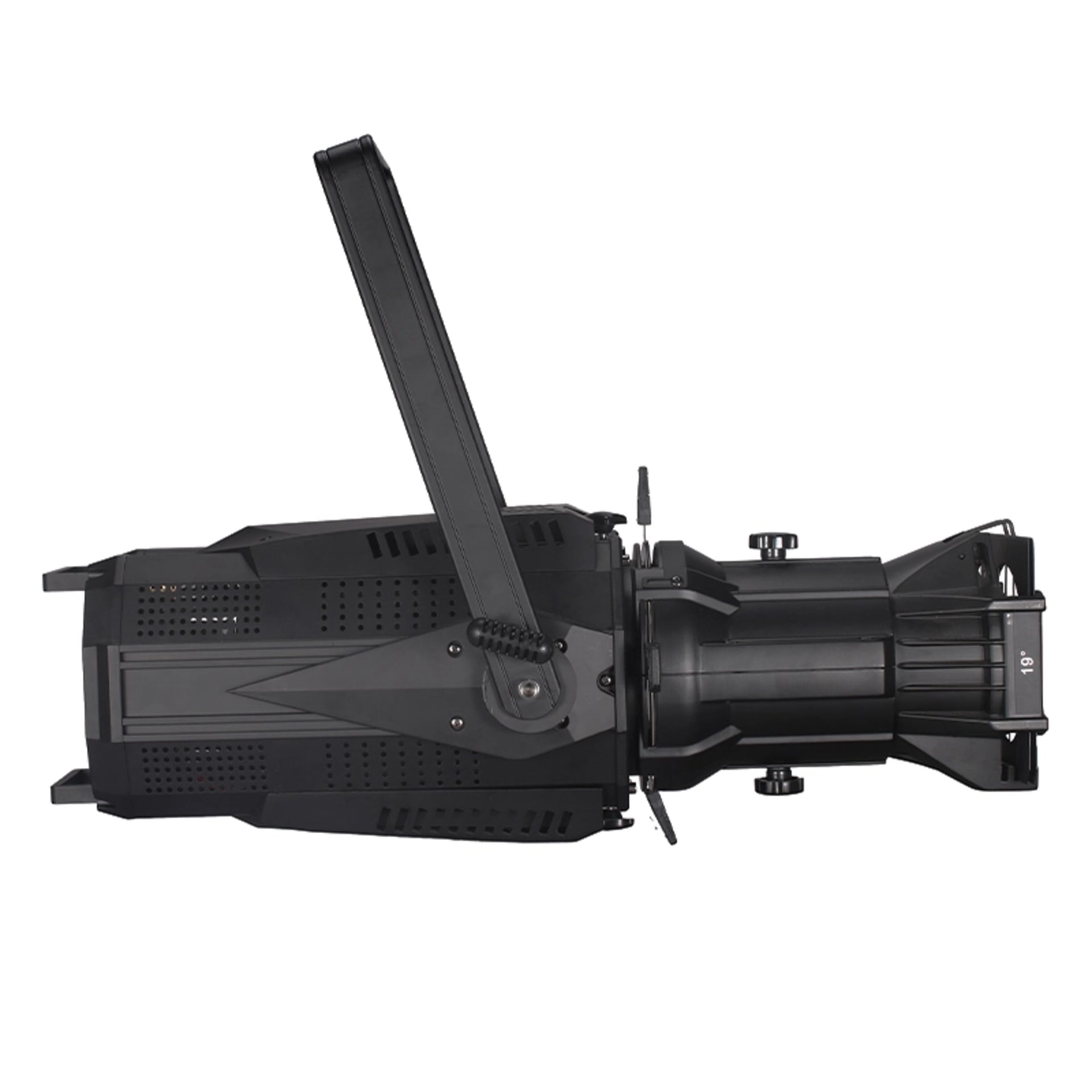

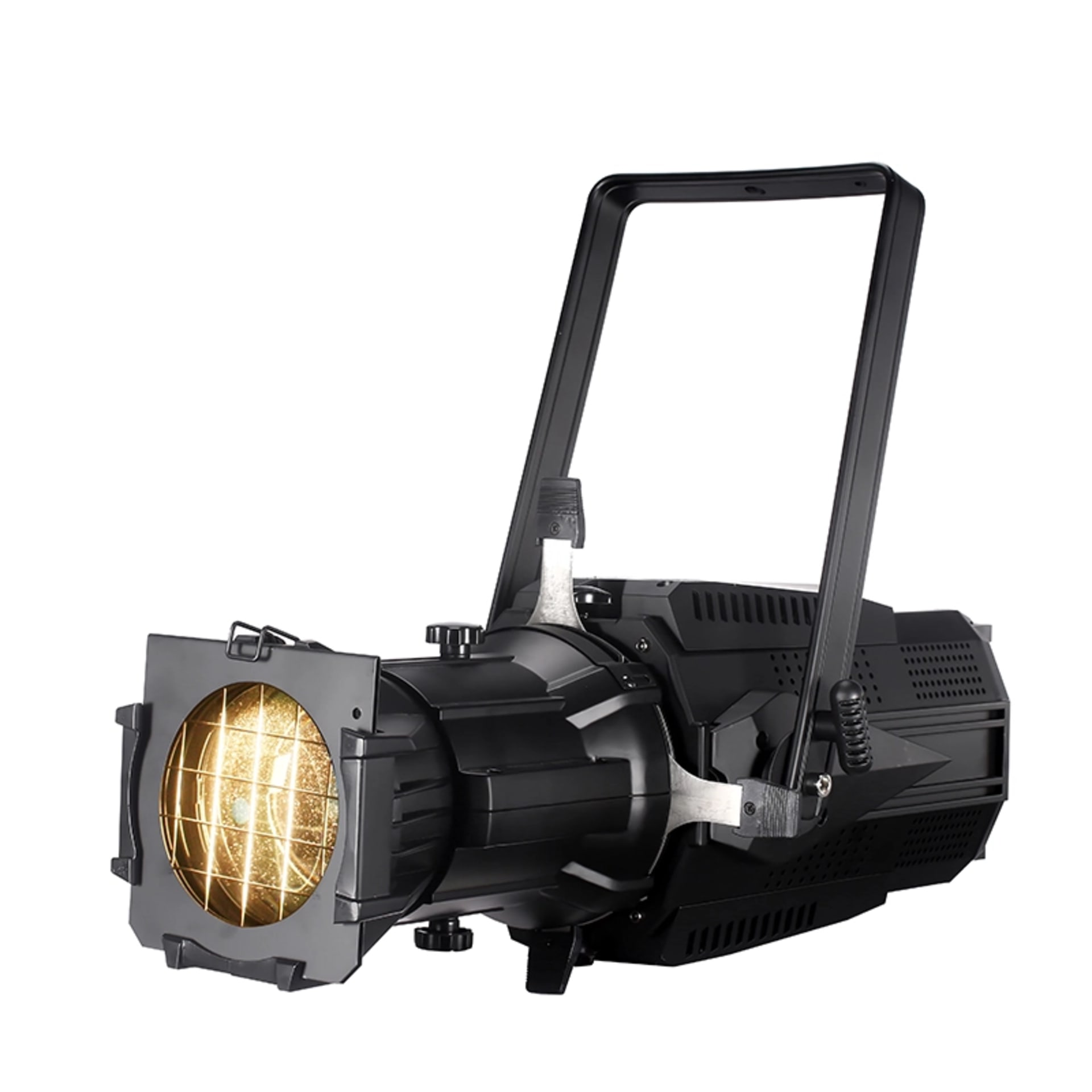

Grand Master Light GML LED PROFILE 300 Theatrical LED Profile Spotlight

K9 Optical Engine and Interchangeable Lens Tubes

The GML LED PROFILE 300 is a full-size, high-luminance ellipsoidal theatrical profile fixture. The light engine features a 300W LED array offered in 3200K, 5600K, or 5-color RGBAL configurations with a color rendering index CRI ≥ 90. High-purity K9 optical glass lenses deliver flat field uniformity and minimal edge fringing. The barrel accommodates six interchangeable fixed lens tubes: 5°, 10°, 19°, 26°, 36°, and 50°. Four manual framing shutter blades enable razor-sharp beam isolation on stage scenery and performers.

Chassis and Thermal Engineering

The rugged IP20 chassis measures 310 × 270 × 700 mm with an overall weight of 10.8 kg. A balanced quiet-fan cooling assembly maintains optimal thermal equilibrium during prolonged theatrical performances and TV studio recording sessions.

Control Interfaces and Specifications

Control protocols include standard DMX512, Auto-run, and Master/Slave operation across 2, 4 (2-in-1), or 10 (RGBAL) channel personalities. Linear 0–100% dimming provides smooth theatrical blackouts. Operating on universal AC 100–240V 50/60Hz mains, power consumption is rated at 300W.
