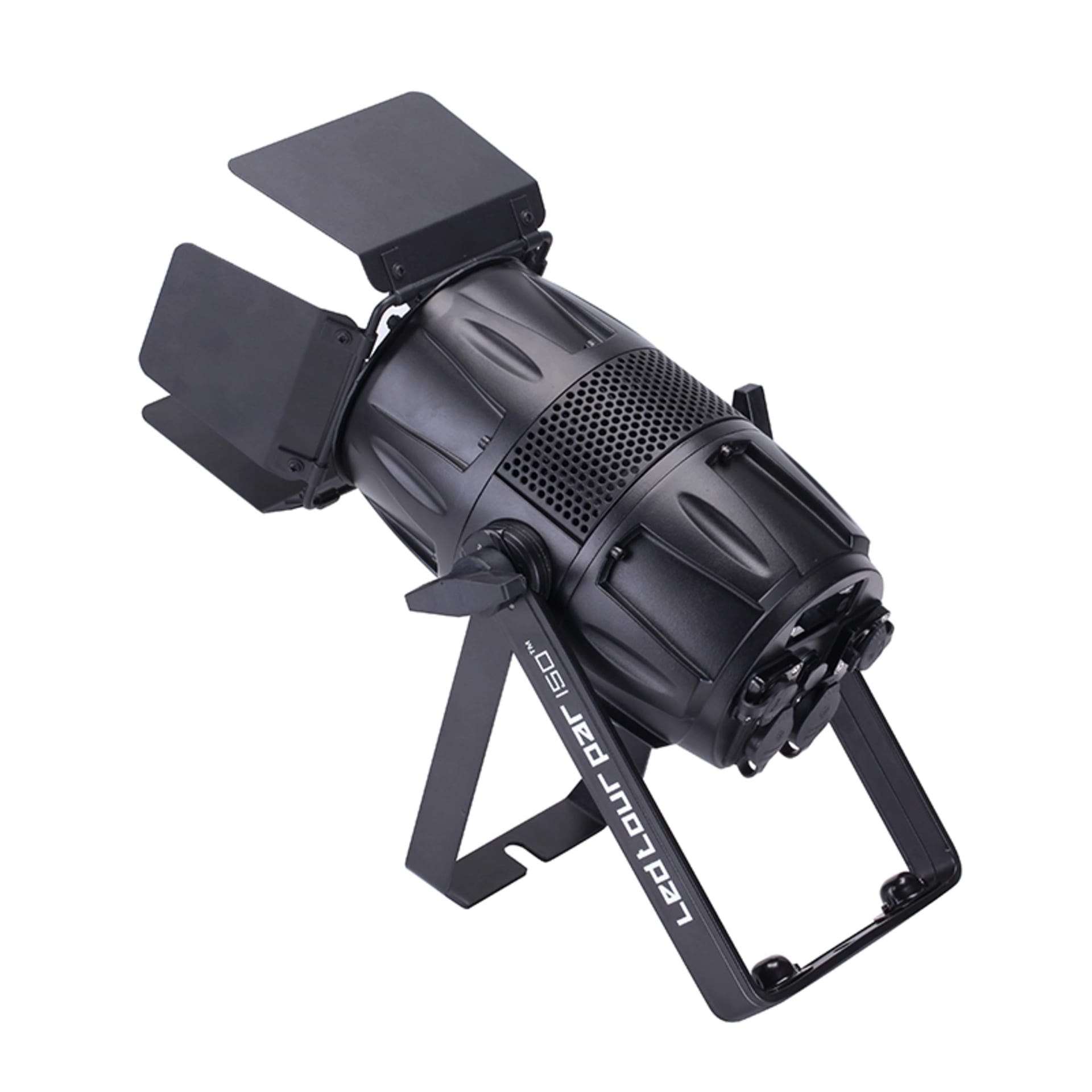

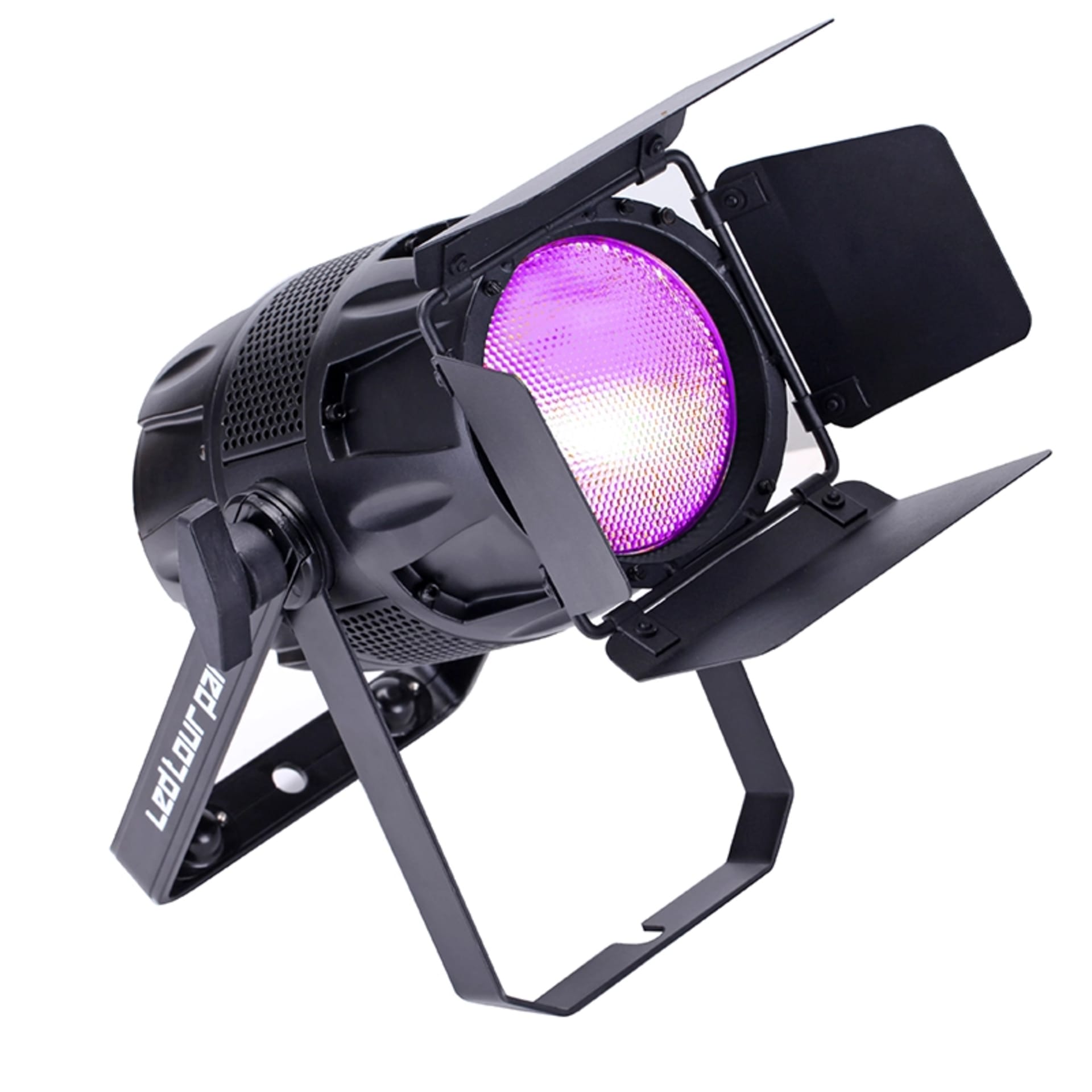

Grand Master Light GML TOUR PAR 150 IP All-Weather Touring LED PAR Spotlight
Technical Specifications
| Fixture type | All-Weather Touring LED PAR Spotlight |
| Ingress protection | IP65 |
| Light source | 150W RGBW 4-in-1 LED (optional WW / CW / UV) |
| Color temperature | 3000K – 7600K |
| Beam angle | 50° (wide uniform wash) |
| Barn door | Optional rotatable barn door |
| Light source lifetime | 50,000 hours |
| PWM rate | 900 Hz – 10,000 Hz (flicker-free) |
| Dimming | Linear, 0–100% |
| Dimmer curves | 4 dimmer curve modes |
Optical System and Wash Uniformity
The GML TOUR PAR 150 IP is engineered specifically for touring productions, open-air concerts, and architectural illuminations. The 150W LED engine is available in RGBW 4-in-1, with optional WW, CW, or UV emitter variants. The optical layout produces an exceptionally uniform wash field with a wide 50° beam angle. Tunable CCT ranges from 3000K to 7600K. The selectable PWM frequency spans 900 Hz to 10,000 Hz, ensuring flicker-free operation in front of broadcast cameras.
Dynamic Control, Dimming, and Thermal Management
Intensity is regulated via 0–100% linear dimming with 4 selectable dimmer curves for precise theatrical fades. The electronic strobe operates from 0.3 to 20 flashes per second. The cooling system features Max and Smart/Silent fan modes for noise-sensitive acoustic venues. Rotatable 4-leaf barn doors are available as an optional accessory.
Tour-Grade Weatherproof Reliability
Constructed from rugged die-cast aluminum, the IP65 enclosure withstands outdoor operating temperatures from -40°C to +45°C. Power and data interfaces feature Seetronic PowerCON TRUE1 In/Out and Seetronic 3-pin XLR In/Out connectors. Control protocols include USITT DMX512 and RDM, with optional 2.4 GHz W-DMX wireless connectivity. Dimensions are 307 × 234 × 247 mm with a weight of only 3.5 kg.
