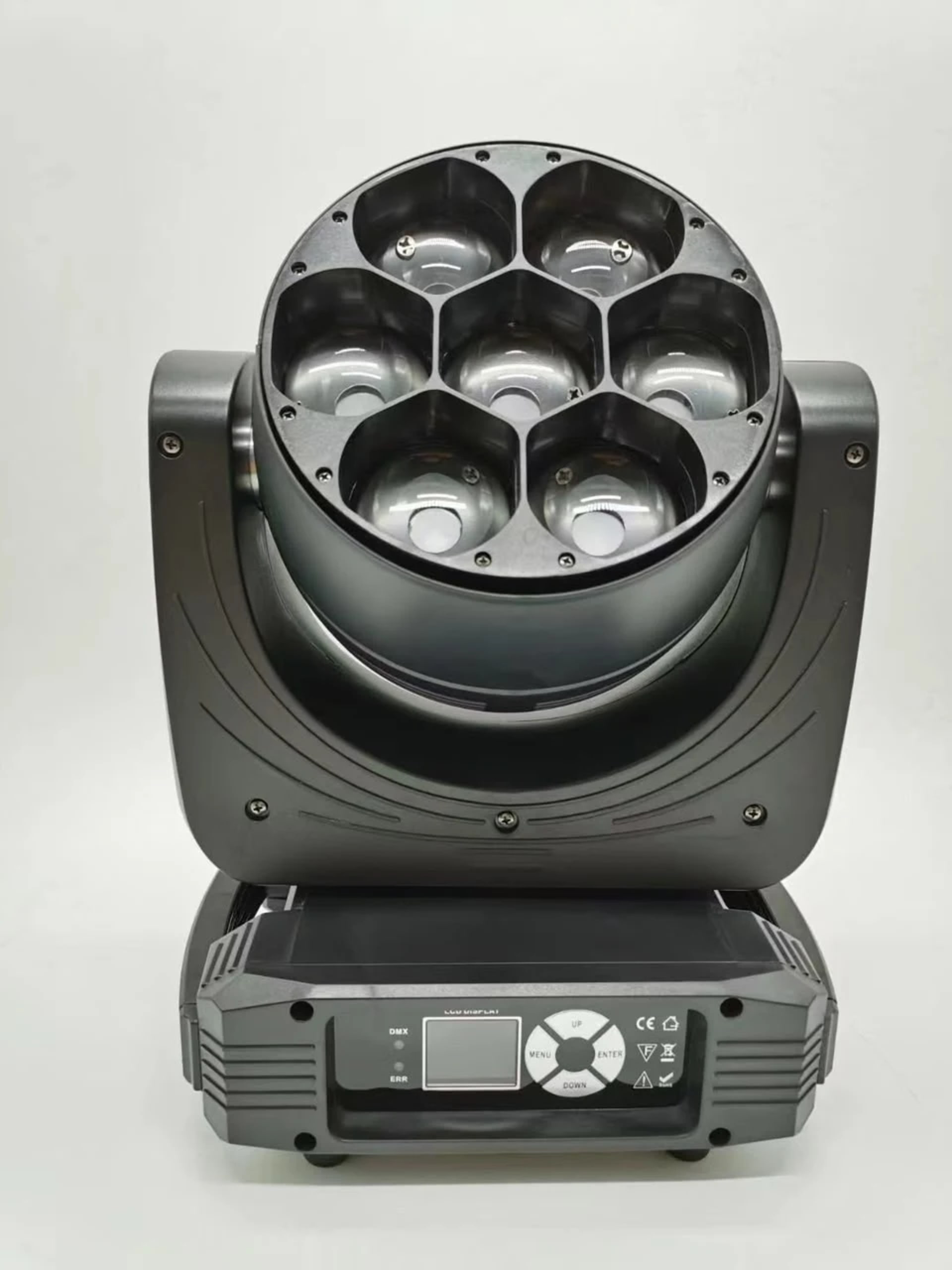

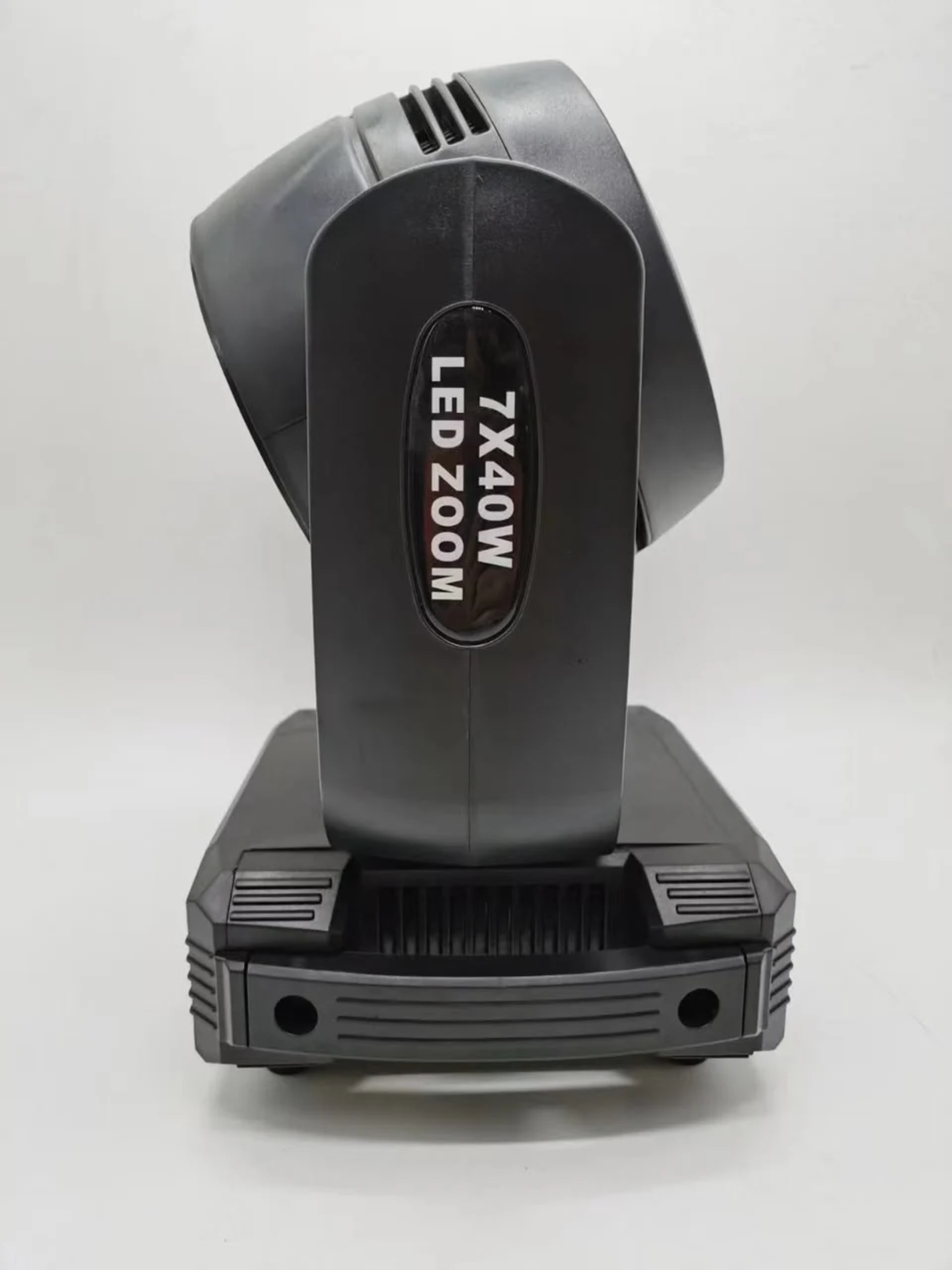

GML Wash 740 Compact LED Moving Head Wash
1 / 4
In StockSKU: F30251wash
from 22 245 UAH
Optical Engine and Architecture
The GML Wash 740 is a compact, high-velocity wash moving head built around 7 authentic 40W Osram RGBW 4-in-1 LED modules with an aggregate 350W power draw. The optical assembly delivers an expansive motorized zoom range spanning from an intense 5° beam to a broad 70° wash spread.
Core Functional Features
- Wide zoom range: smooth and rapid linear motorized zoom from 5° to 70° adapting to close-throw and long-throw stage setups.
- Pixel mapping: independent pixel control per LED emitter with pre-programmed geometric shape macros.
- Agile mechanics: responsive Pan 540° and Tilt 270° movement for dynamic aerial beam sweeps.
- Strobe options: variable electronic strobe ranging from 1 to 25 fps alongside random pulsing modes.
- Control options: USITT DMX512 across 17 channels, Master/Slave, standalone auto, and sound-active programs paired with an LCD display.
Application Areas
Ideal for mobile production kits, nightclub dance floors, live performance venues, corporate stages, and touring lighting packages.
Compact LED moving head wash featuring 7 × 40W Osram RGBW 4-in-1 LEDs, ultra-wide 5–70° linear zoom, individual pixel mapping, and 350W power draw for club and live stage rigs.
Modifications3
| SKU | Specification / Option | Status | Price | Quantity | Action |
|---|---|---|---|---|---|
| — | GML Wash 740 Compact LED Moving Head Wash | In Stock | 22 245 UAH | ||
| MOD-1 | Standard | In Stock | 22 245 UAH | ||
| MOD-2 | Pixel control | In Stock | 26 073 UAH |
Modifications3
—In Stock
GML Wash 740 Compact LED Moving Head Wash
22 245 UAH
MOD-1In Stock
Standard
22 245 UAH
MOD-2In Stock
Pixel control
26 073 UAH
Technical Specifications
| Fixture type | Compact LED moving head wash |
| Light source | 7 × 40W Osram RGBW 4-in-1 LEDs |
| LED quantity | 7 pcs |
| Zoom range | 5–70° |
| Pixel mapping | Individual pixel control per cell |
| Strobe | 1–25 flashes/sec or random |
| Pan movement | 540° |
| Tilt movement | 270° |
| Control protocols | DMX512, Master/Slave, Auto, Sound control |
| DMX channels | 17 CH |
| Fixture type | Compact LED moving head wash |
| Light source | 7 × 40W Osram RGBW 4-in-1 LEDs |
| LED quantity | 7 pcs |
| Zoom range | 5–70° |
| Pixel mapping | Individual pixel control per cell |
| Strobe | 1–25 flashes/sec or random |
| Pan movement | 540° |
| Tilt movement | 270° |
| Control protocols | DMX512, Master/Slave, Auto, Sound control |
| DMX channels | 17 CH |
