LAP-TEQ MOTION

The TEQSAS LAP-TEQ MOTION system is designed for professional control of motorized chain hoists in live events, touring productions, theaters, arenas, and permanent installations.

The system enables simultaneous control of up to 16 motor channels while providing real-time access to LAP-TEQ sensor data, including array angle, height, and environmental measurements.

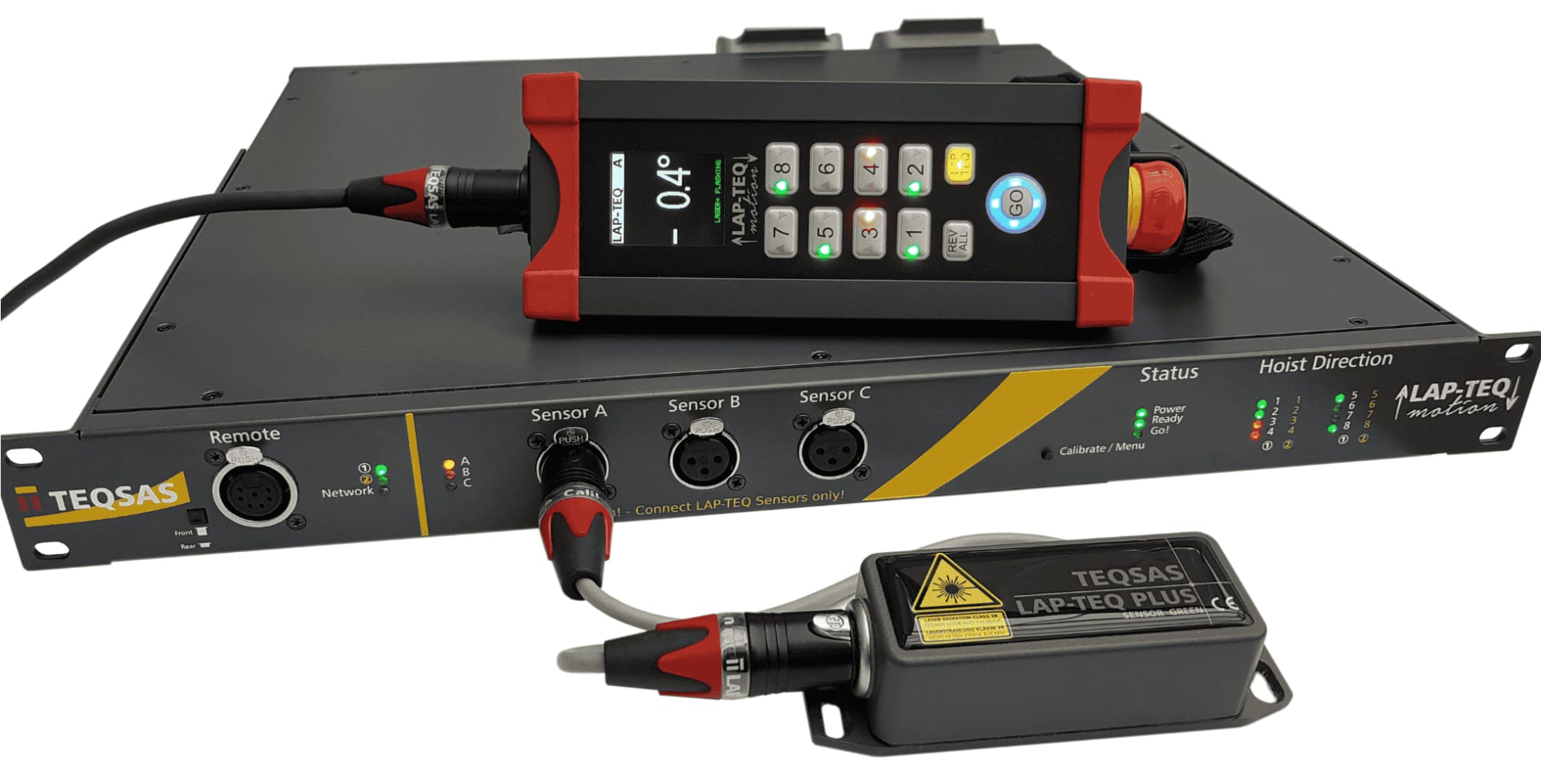

The system consists of a Rack Unit and a Motion Remote controller.

A single Rack Unit controls up to 8 motor channels. Two Rack Units can be linked together to provide control of up to 16 channels. Connection to motor controllers is made through standard industrial interfaces, with power supplied via PowerCON or directly from the motor controller.

Three integrated LAP-TEQ PORTs allow connection of:

• LAP-TEQ PLUS INCLINOMETER

• LAP-TEQ PLUS ELEVATION

• LAP-TEQ PLUS ATMOSPHERE

The Motion Remote features a 1.8-inch TFT display, emergency stop button, and dedicated control buttons for motor operation and sensor monitoring.

An integrated TCP/IP network interface enables sensor monitoring through a web browser, extending functionality similar to the LAP-TEQ PLUS INTERFACE.

Key Features

• Control up to 16 motor channels.

• Three integrated LAP-TEQ sensor ports.

• Real-time angle and height monitoring.

• 1.8" TFT color display.

• Emergency stop functionality.

• TCP/IP web-based monitoring.

• Designed for line arrays and professional rigging applications.
