LAP-TEQ PLUS Inclinometer Set

The LAP-TEQ PLUS Inclinometer Set is a professional measurement system designed to precisely position line array loudspeaker systems in live sound, touring, theatre, and installation environments.

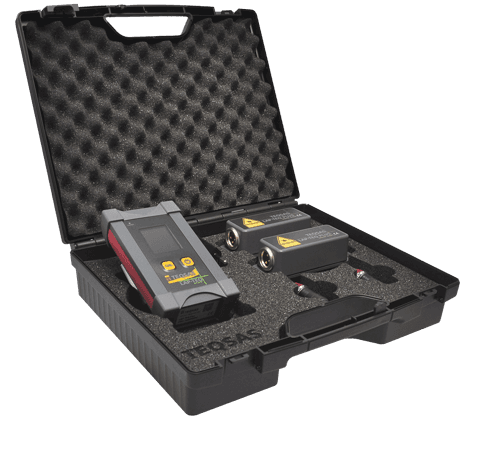

The system consists of two components: the LAP-TEQ PLUS Sensor and the LAP-TEQ PLUS Display. Mounted directly to a loudspeaker flying frame or bumper, the sensor accurately measures the vertical alignment angle of the array.

An integrated green cross-line laser visually indicates the acoustic aiming point of the top loudspeaker element, making system alignment faster and more precise. The cross-pattern laser remains visible even across curtains, seating rows, and other obstacles.

The rugged, water-resistant construction allows reliable operation in outdoor environments including concerts and festivals. Measurement data is transmitted through a standard 3-pin XLR cable to the LAP-TEQ PLUS Display, which features a 1.8-inch color TFT screen, rechargeable battery, and intuitive menu navigation.

The system is compatible with a wide range of leading loudspeaker manufacturers including L-Acoustics, d&b Audiotechnik, JBL, Meyer Sound, TW Audio, Coda Audio, Voice Acoustic, and more.

Key Features

• Precision line array angle measurement.

• Integrated green cross-line laser.

• Water-resistant construction.

• 1.8" color TFT display.

• Rechargeable battery with USB charging.

• LAP-TEQ PORT compatible.

• Supports additional altitude, temperature, and humidity sensors.

• Fast installation on loudspeaker flying frames.

• Ideal for touring, rental, and system engineering applications.
