LiteDimmer Spectrum AC/DC 200

Name: LiteDimmer Spectrum AC/DC 200
Brand: LITEGEAR
Availability: PreOrder

On OrderLITEDIMMER SPECTRUM

103 221 UAH

Optical Specifications

Product Name: LiteDimmer Spectrum AC/DC 200
Part Number: LD-SPECTRUM-ACDC200
Model: 299-1
Input Voltage: 100 – 240 V AC, 50/60 Hz
Input Current: 3A
Output Voltage: 48 V DC
Output current: 5A

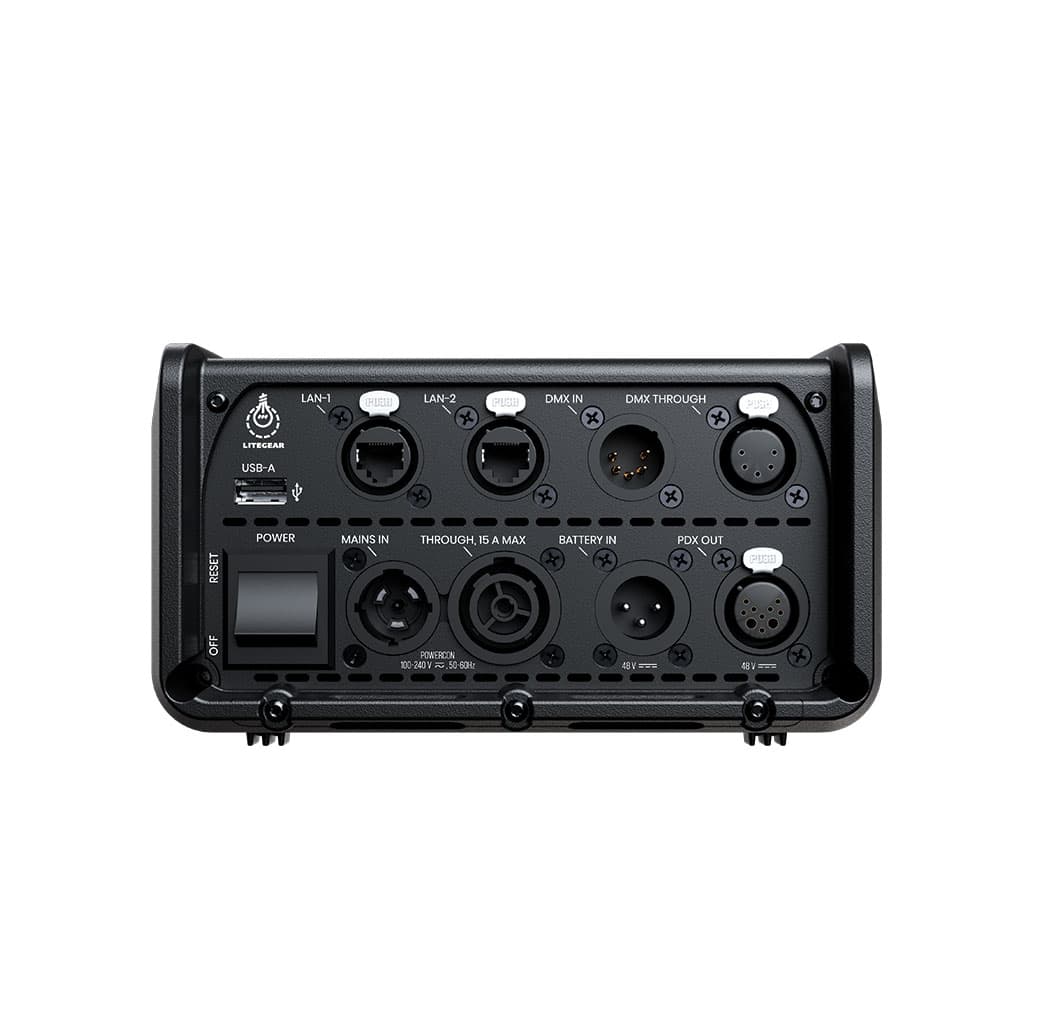

Data connectors: USB-A, 2x EtherCon, 5-pin DMX In and Thru, internal CRMX
antenna Data connectors: PDX
Mains power connectors: powerCON TRUE1 TOP In and Thru (Edison/Schuko/Bare Ends cables available)
Control: DMX, RDM, CRMX, Art-Net, sACN
Switches: built-in switch
Power: maximum 250 W
IP rating: IP20
Weight: 6.8 lbs (3.1 kg)
Dimensions: Height: 4.1 in (104.4 mm)
Width: 7.3 inches (185 mm)
Length: 13.3 inches (338.6 mm)
Maximum operating temperature: 122ºF (50ºC)
Mounting: kMount (truss and stand mounts available)
Certifications: ETL, CE, UKCA, FCC (certification pending)

Get Consultation

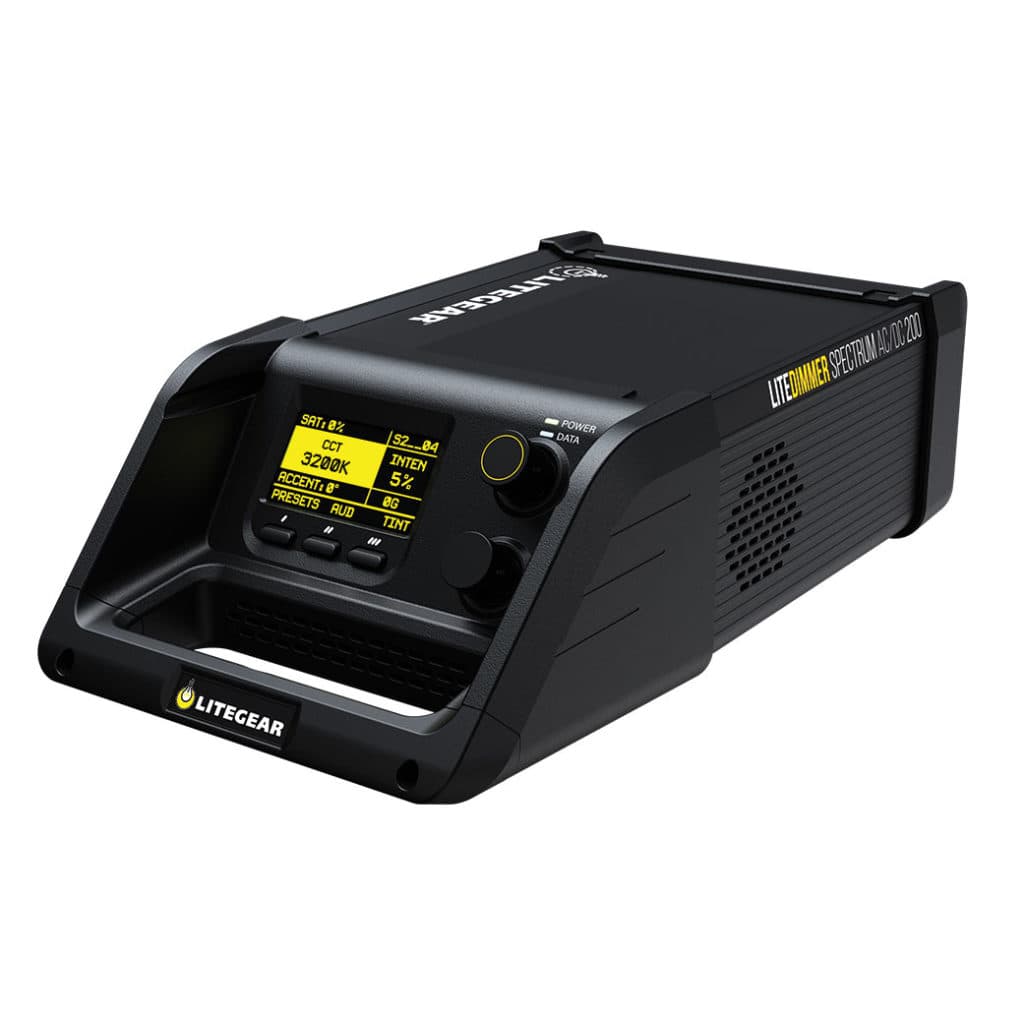

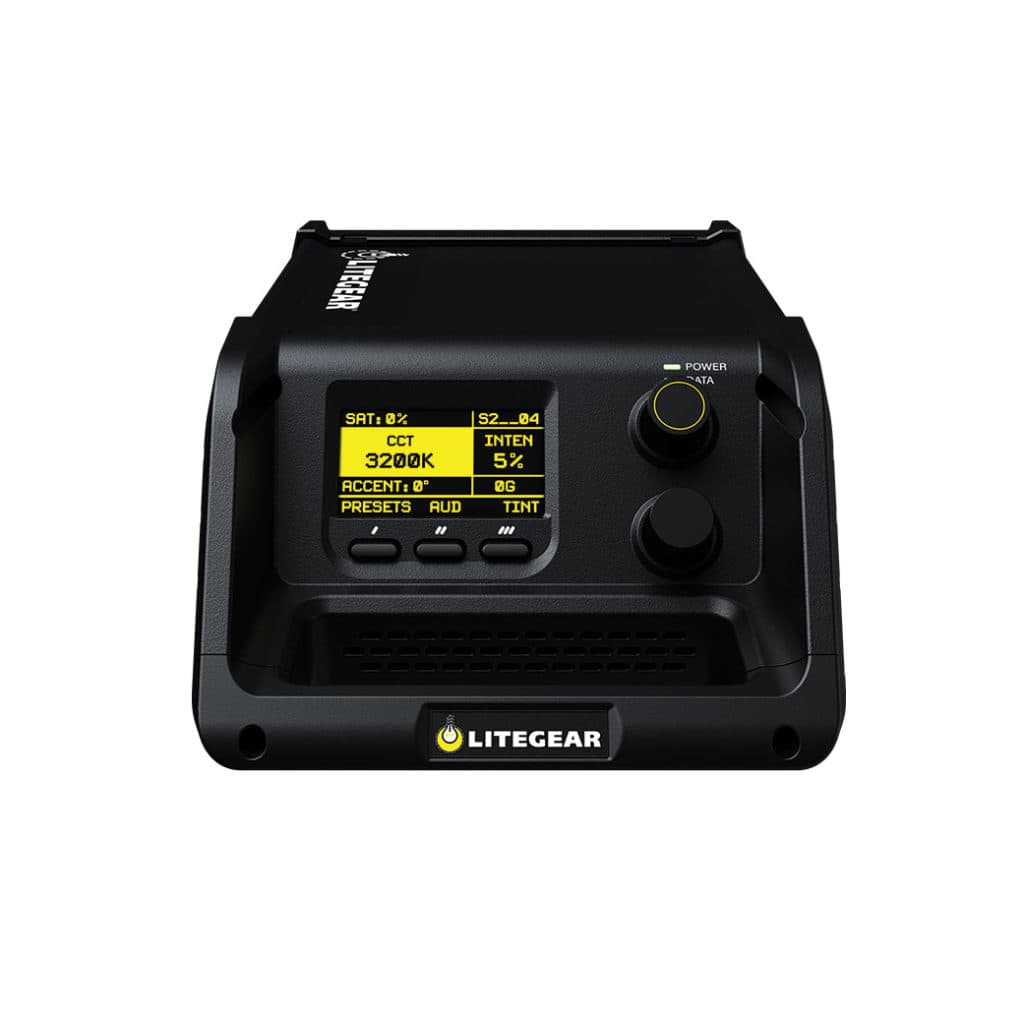

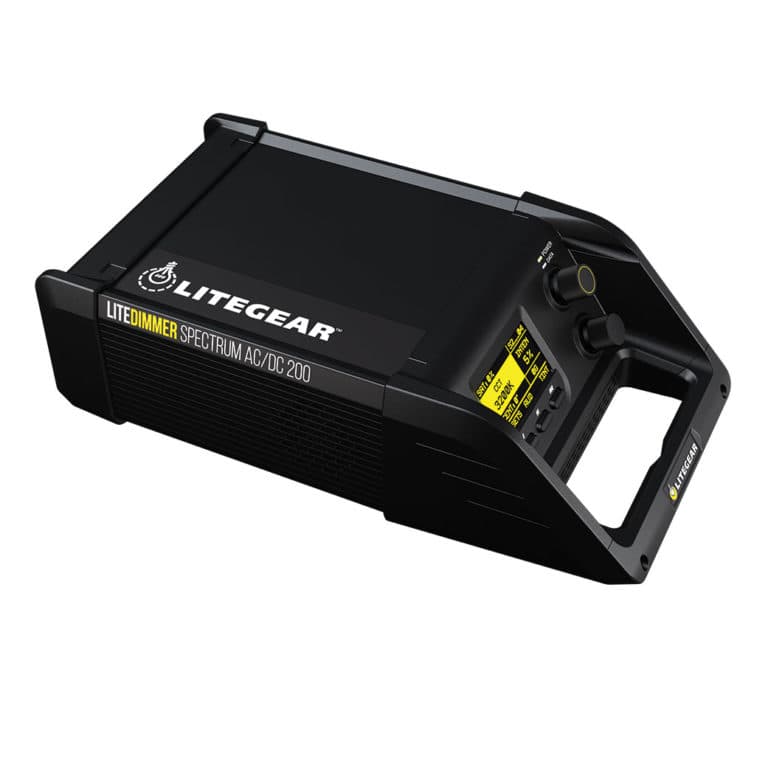

The LiteDimmer Spectrum AC/DC 200 is part of a new class of dimmers featuring outstanding new functions, an ergonomic design, and an ultra-compact form factor. Complete with local control and industry-leading communication protocols, the AC/DC 200 can control multiple large-format pixels, making LiteMat Spectrum pixel mapping easier than ever. This new hardware, specifically designed with AC and DC power options, a built-in power supply, expanded processing power, an Ethernet switch, expanded memory, and a faster processor, ensures smooth operation and cutting-edge software features. An integrated USB-A port enables easy updates, ensuring years of innovative software advancements.
