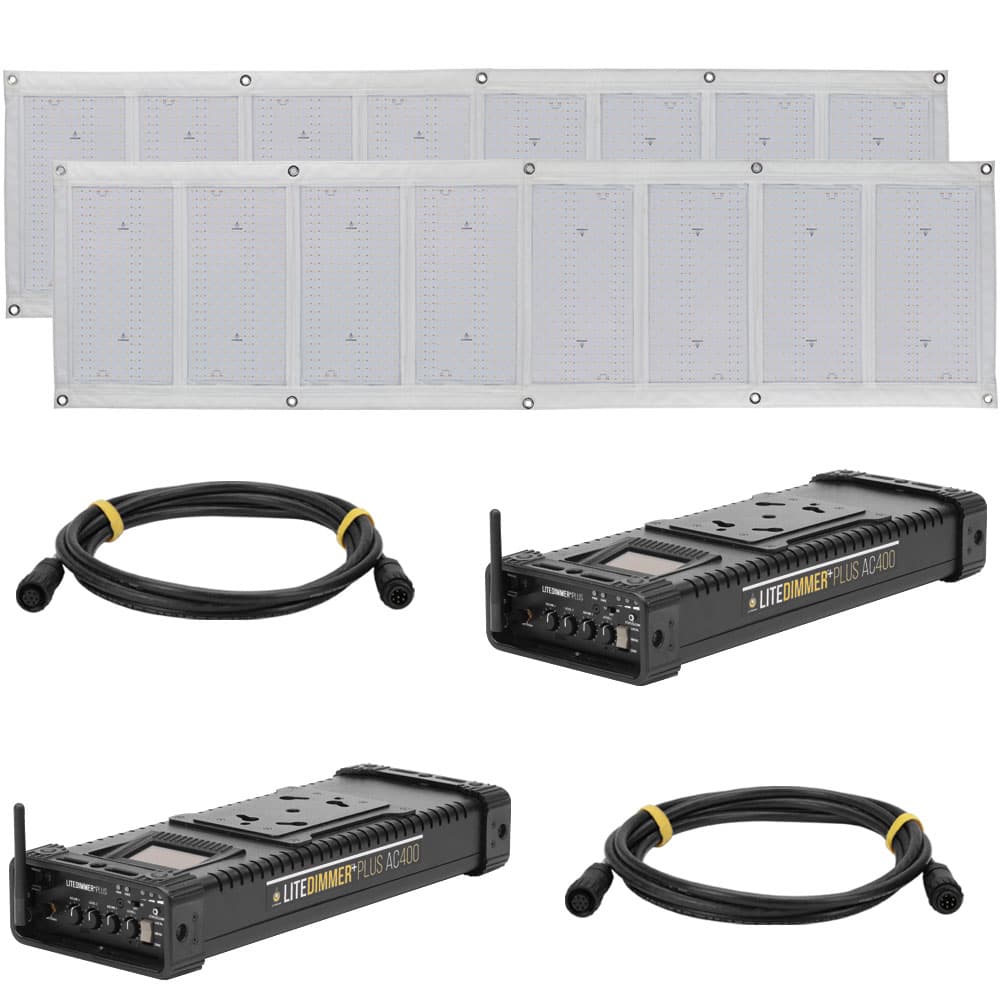

LiteTile Plus Duo Kit, 4×8, Hybrid, Complete Kit

On OrderLITETILE
501 064 UAH

Optical Specifications

Power: 400W
Input Voltage: 24VDC
Current Draw: 16.67A
Number of LEDs: 4608
Dimming Range: 0 to 100% continuously* *When used with a compatible LiteGear
dimmer Mounting: Velcro®-backed trim (front and back) Large grommets for cord or cable ties Optional LiteBox
frame Ambient temperature: –10° to +50° C (14° to 122° F)
IP rating: IP50

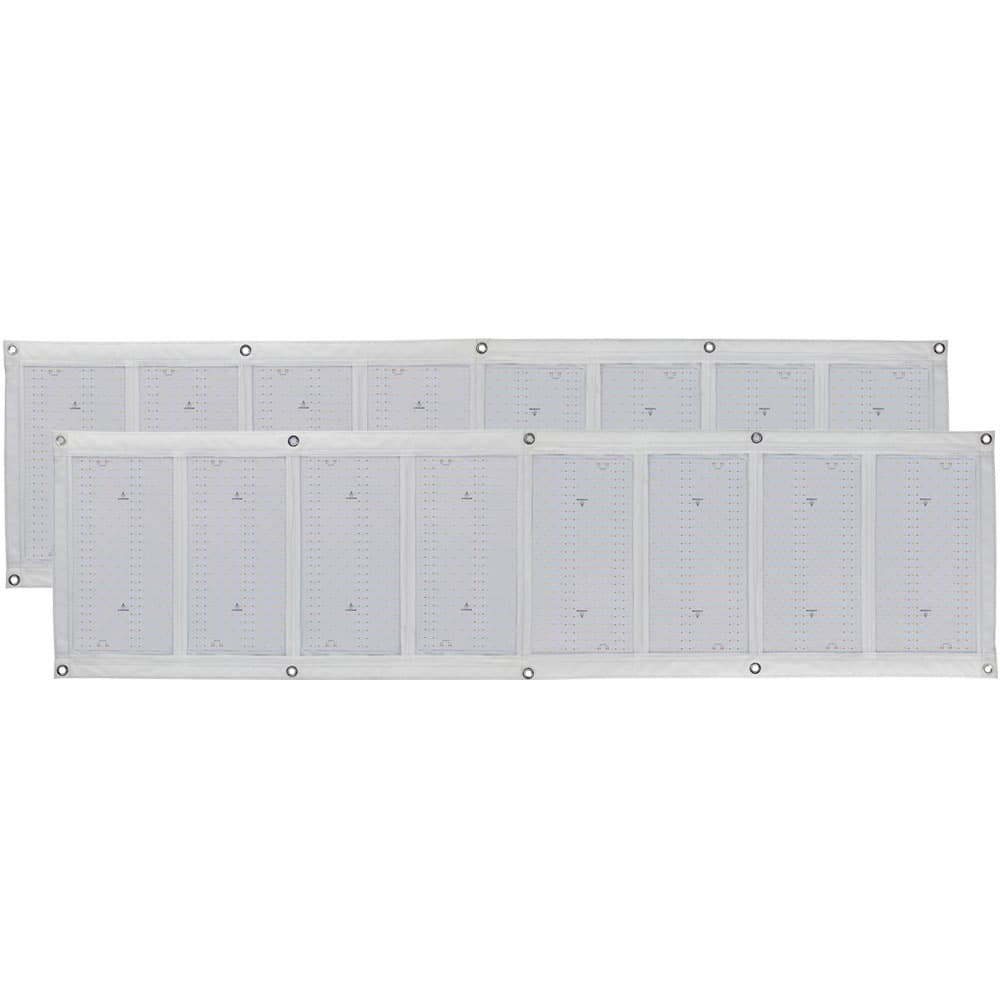

The LiteTile Plus Kit, 2×8, is the first modular LED lighting fixture made entirely of engineered textiles. LiteTile+ Plus 8 allows users to install subtle, soft, and adjustable light in places that were previously inaccessible. Since LiteTile+ Plus folds up to 180º between each light engine, the fixture can be configured in numerous ways, allowing for 360º, double-sided, or irregular shapes. The LiteTile+ Plus 8 can be attached directly to wall or ceiling surfaces, such as office suspended ceilings, using spring clips or tape. The LiteTile+ Plus 8 truly demonstrates its versatility when four units are connected together and mounted on an 8’ x 8’ top/butterfly frame. That’s 1,600 watts and over 18,400 cinematic-quality emitters, creating ultra-soft hybrid light without the need for additional diffusion.
