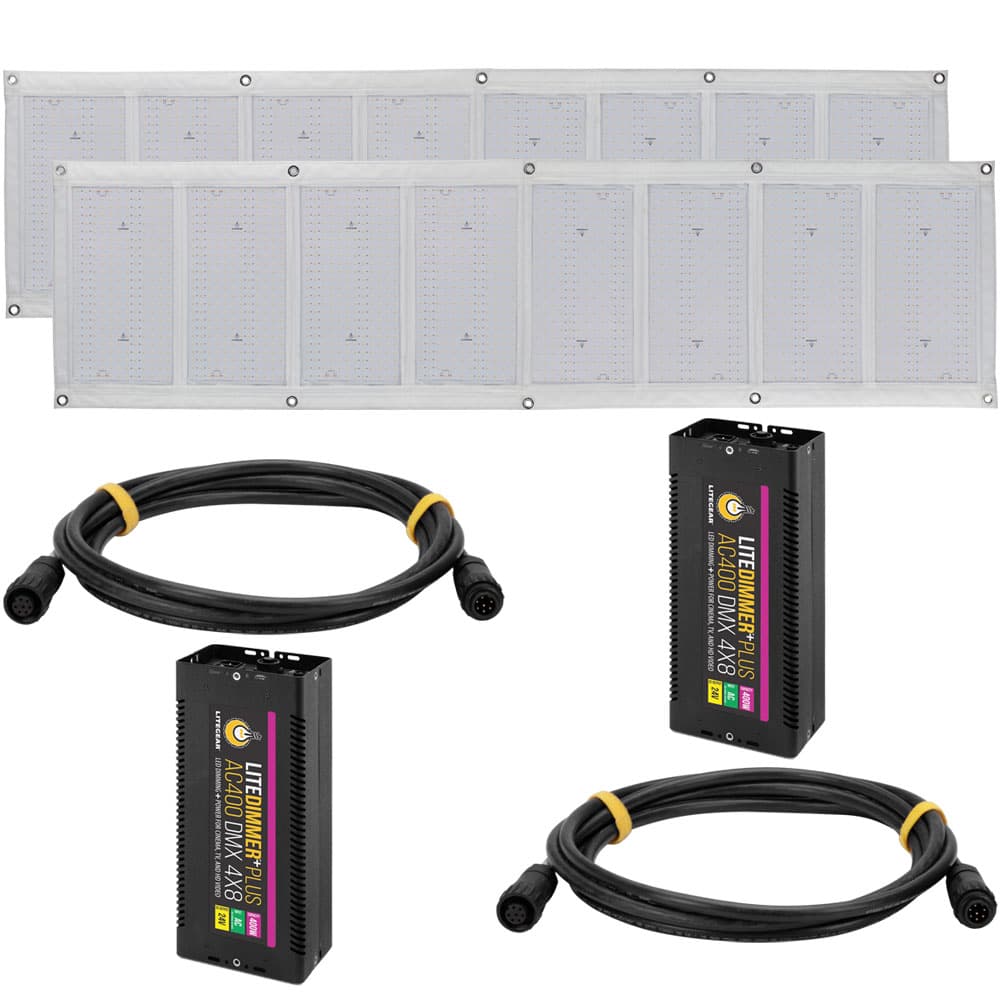

LiteTile Plus Kit, 4×8, Hybrid, Complete Kit
On OrderLITETILE
444 526 UAH
Power: 400 W
Input Voltage: 24 VDC
Current Draw: 16.67 A
Number of LEDs: 4608

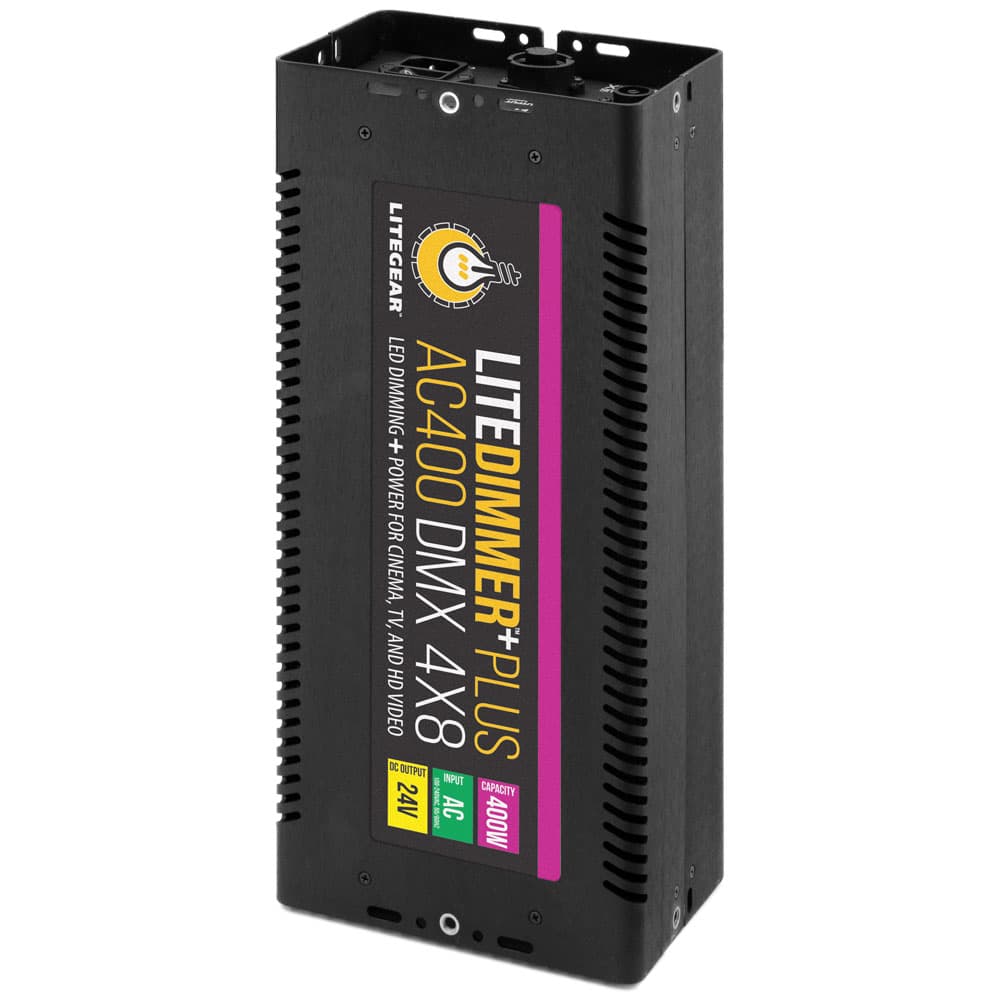

Dimming Range: 0–100% continuously* *When used with a compatible LiteGear
dimmer Mounting: Velcro®-backed trim (front and back) Large grommets for cord or cable ties Optional LiteBox
frame Ambient temperature: –10° to +50° C (14° to 122° F)
IP rating: IP50

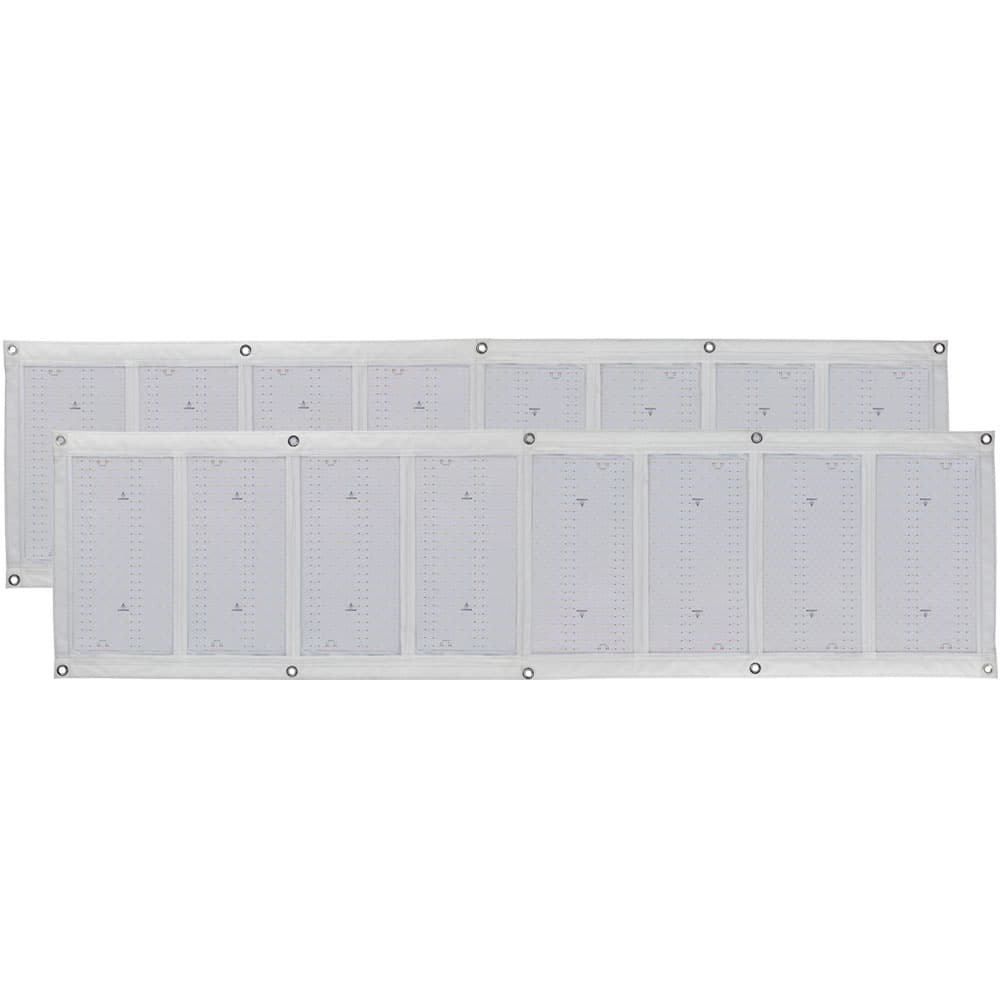

The LiteTile Plus Kit, 2×8, is the first modular LED lighting fixture made entirely of engineered textiles. LiteTile Plus 8 allows users to install subtle, soft, and adjustable light in places that were previously inaccessible. Since LiteTile Plus folds up to 180º between each light engine, the fixture can be configured in numerous ways, allowing for 360º, double-sided, or irregular shapes. The LiteTile Plus 8 can be attached directly to wall or ceiling surfaces, such as office suspended ceilings, using spring clips or tape. The LiteTile Plus 8 truly demonstrates its versatility when four units are connected together and attached to an 8’ x 8’ top/butterfly frame. That’s 1,600 watts and over 18,400 cinematic-quality emitters, creating ultra-soft hybrid light without the need for additional diffusion.
