proTEC Flexline Controller
On Order
Technical Specifications | |
Control and Protocols | |
Protocols | DMX-512, RDM, ArtNet, sACN, proTEC, proTEC Link |
Modes | PTSC A–H, Emergency Stop, Emergency Halt |
Connectivity | |
Power | Neutrik powerCON TRUE1 In/Out |
Signal | XLR 5-pin, XLR 3-pin, etherCON A/B |
Emergency Cube | proTEC Link 7-pin / 9-pin |
Construction | |
Material | Stainless steel, powder-coated |
Protection | IP50 |
Features | Touchscreen display, web server |
Power supply | |
Voltage | 100–240 V |
Power | up to 30 W |
Dimensions and weight | |
Dimensions | 175 × 430 × 200 mm |
Weight | 4 kg |

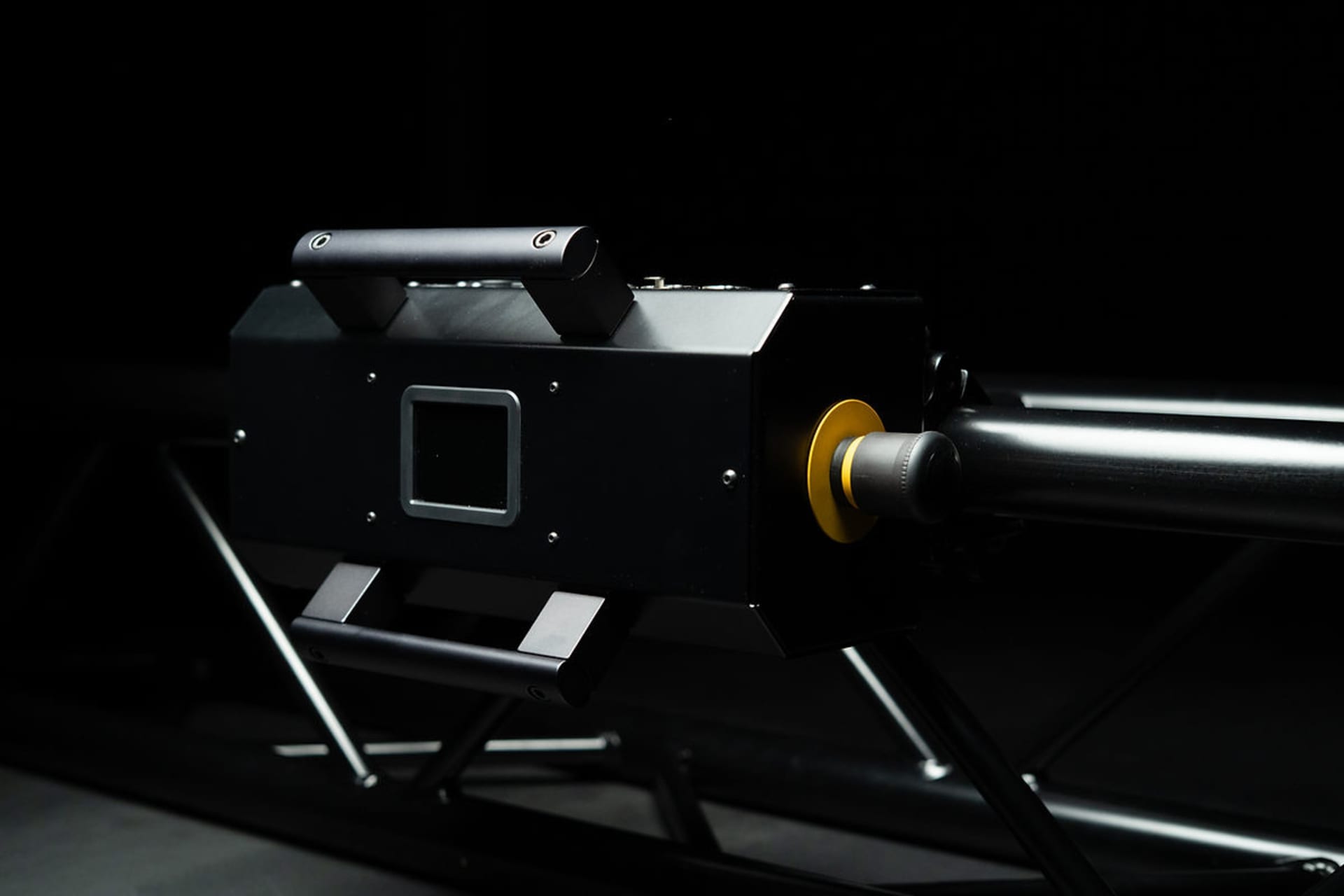

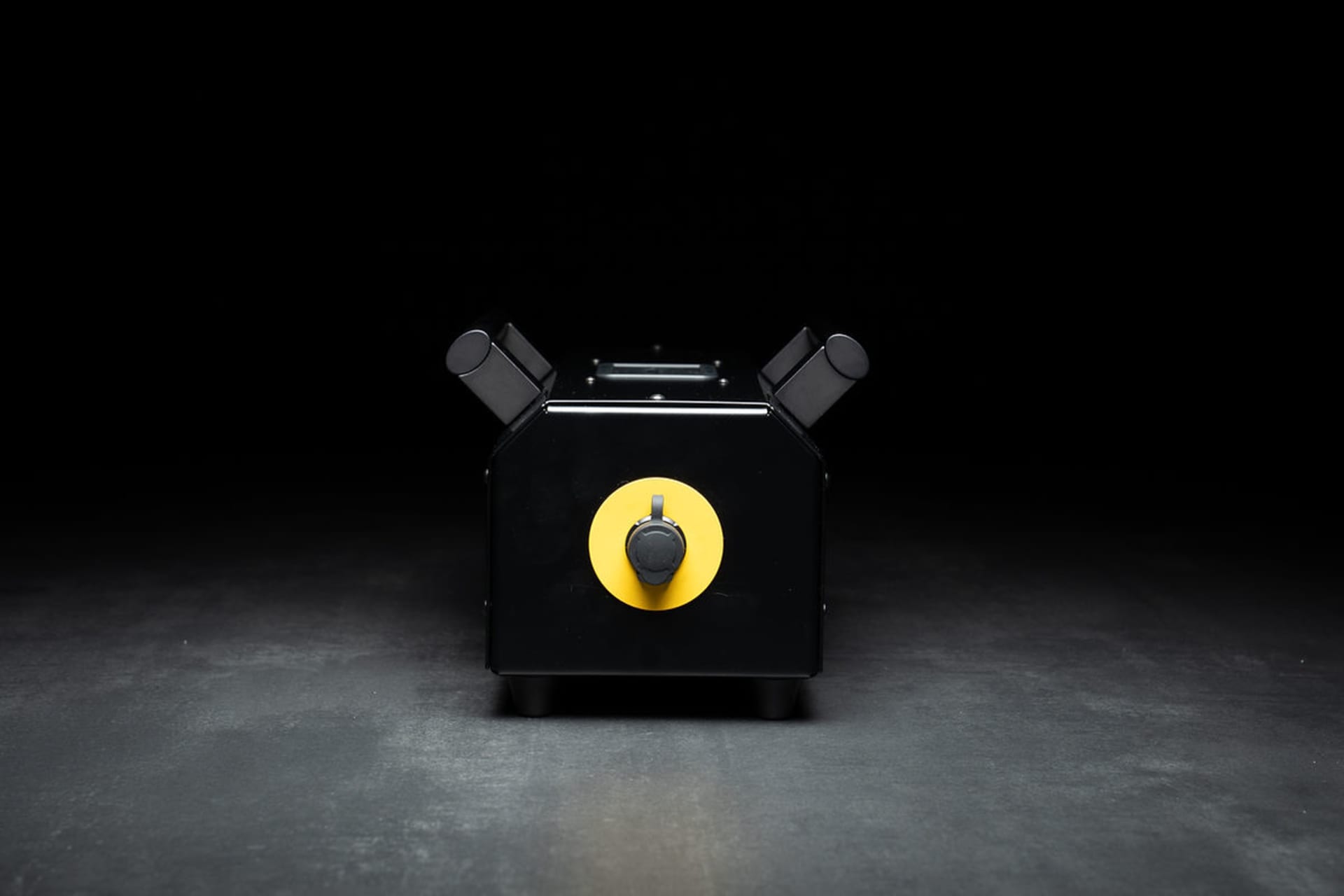

The proTEC Flexline Controller is a compact safety and emergency stop controller for pyrotechnic and SFX systems, and is part of the proTEC architecture. The device is designed for use directly on stage or in close proximity to it. The controller supports flexible installation thanks to mounting on a truss or stage using standard F3x mounts. The Emergency Halt and Emergency Stop buttons can be either integrated or mounted separately. Communication between components is carried out via Ethernet using the proTEC Safety Protocol. Two emergency response modes are provided: Emergency Halt and Emergency Stop. The controller supports DMX, ArtNet, and sACN, has a built-in node function, and displays all connected devices along with their status and parameters. The proTEC Flexline Controller is a reliable solution for ensuring safety directly in the show area.
