proTEC Switchbox
On Order
Technical Specifications | |
Control and Protocols | |
Protocols | DMX-512, RDM, ArtNet, sACN, proTEC |
DMX channels | 9 |
Control modes | Free, On/Off, On-Time, Delay-Time |
Connections | |
Power | Neutrik powerCON TRUE1 In/Out |

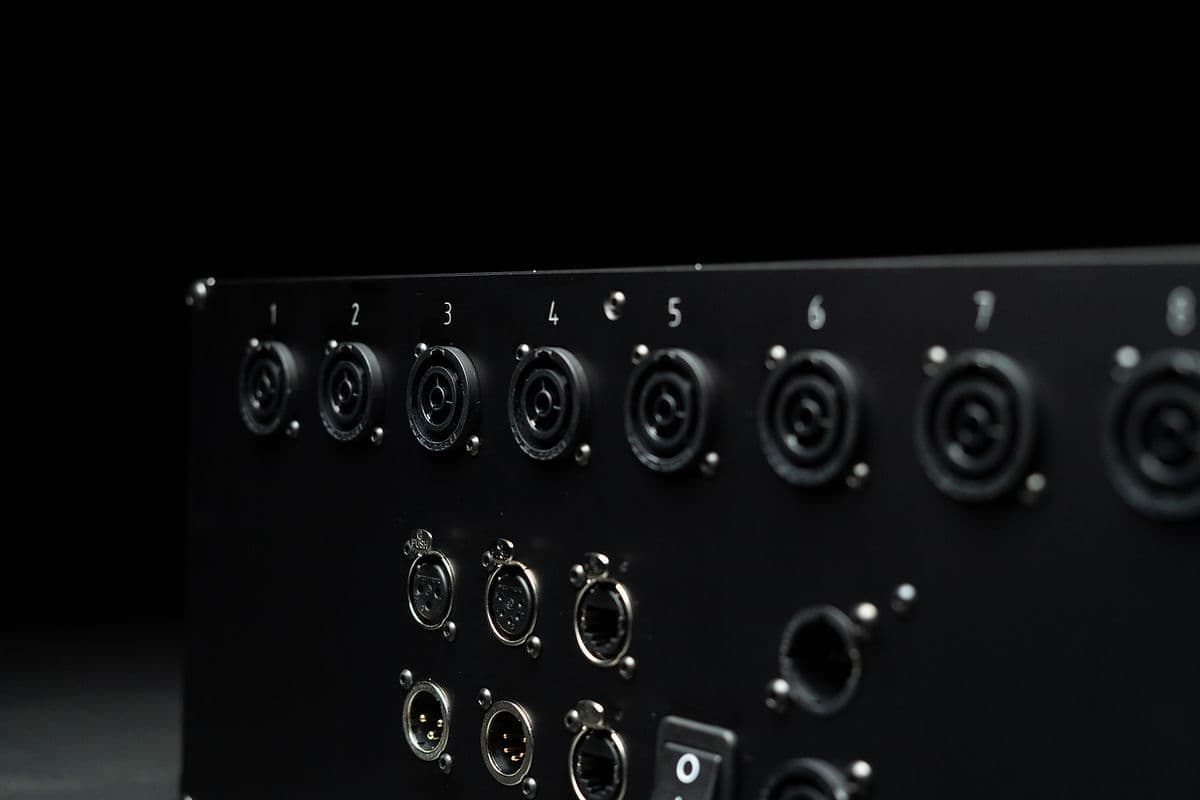

Outputs | 8 × Neutrik powerCON TRUE1 Out |
Signal | 5-pin XLR, 3-pin XLR, etherCON A/B |
Construction | |
Material | Aluminum, black anodized finish |
Protection | IP50 |

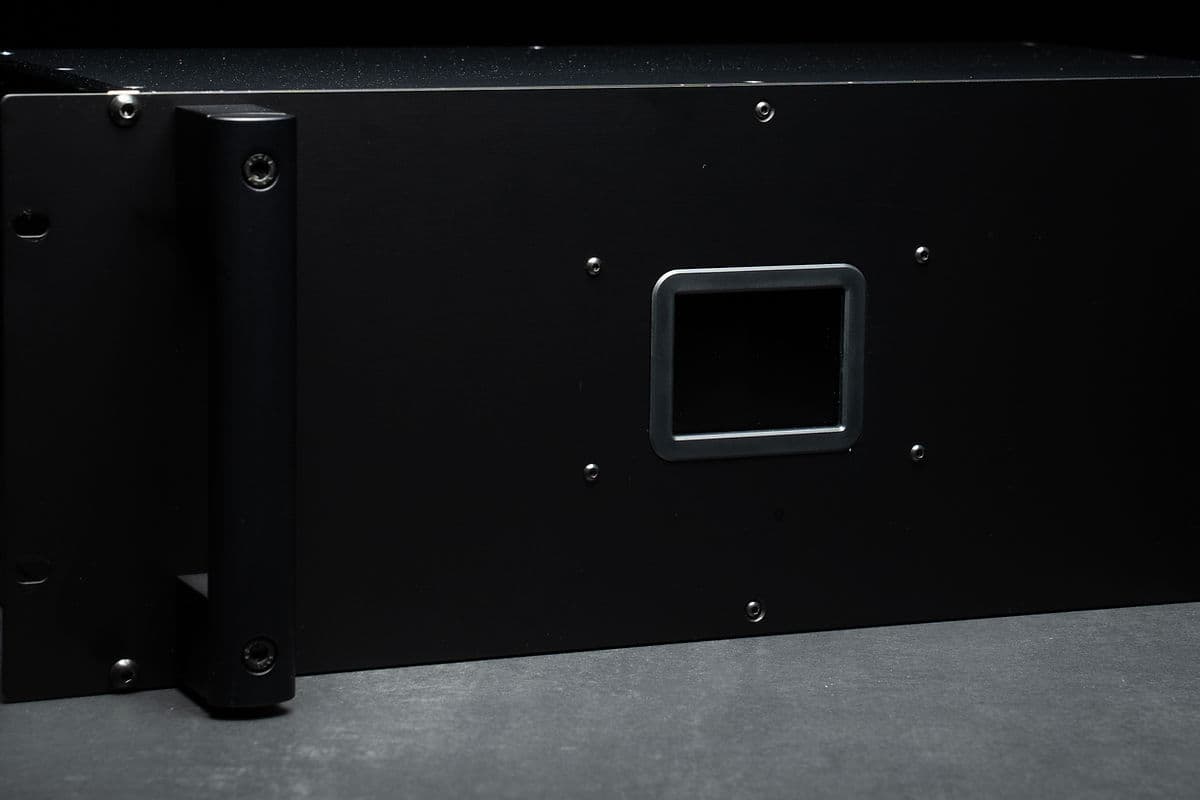

Display | Color touchscreen, built-in web server |
Power supply | |
Voltage | 100–240 V, 50–60 Hz |
Max. power | 3600 W |
Mounting and installation | |
Mounting | 19″ rack mount (IEC 60297) |
Rack height | 4U (4HE) |
Outputs | |
Channels | 8 |
Load / channel | up to 10 A |
Total load | up to 16 A (3600 W) |
Dimensions and weight | |
Dimensions (H×W×D) | 177 × 483 × 258 mm |
Weight | 4 kg |

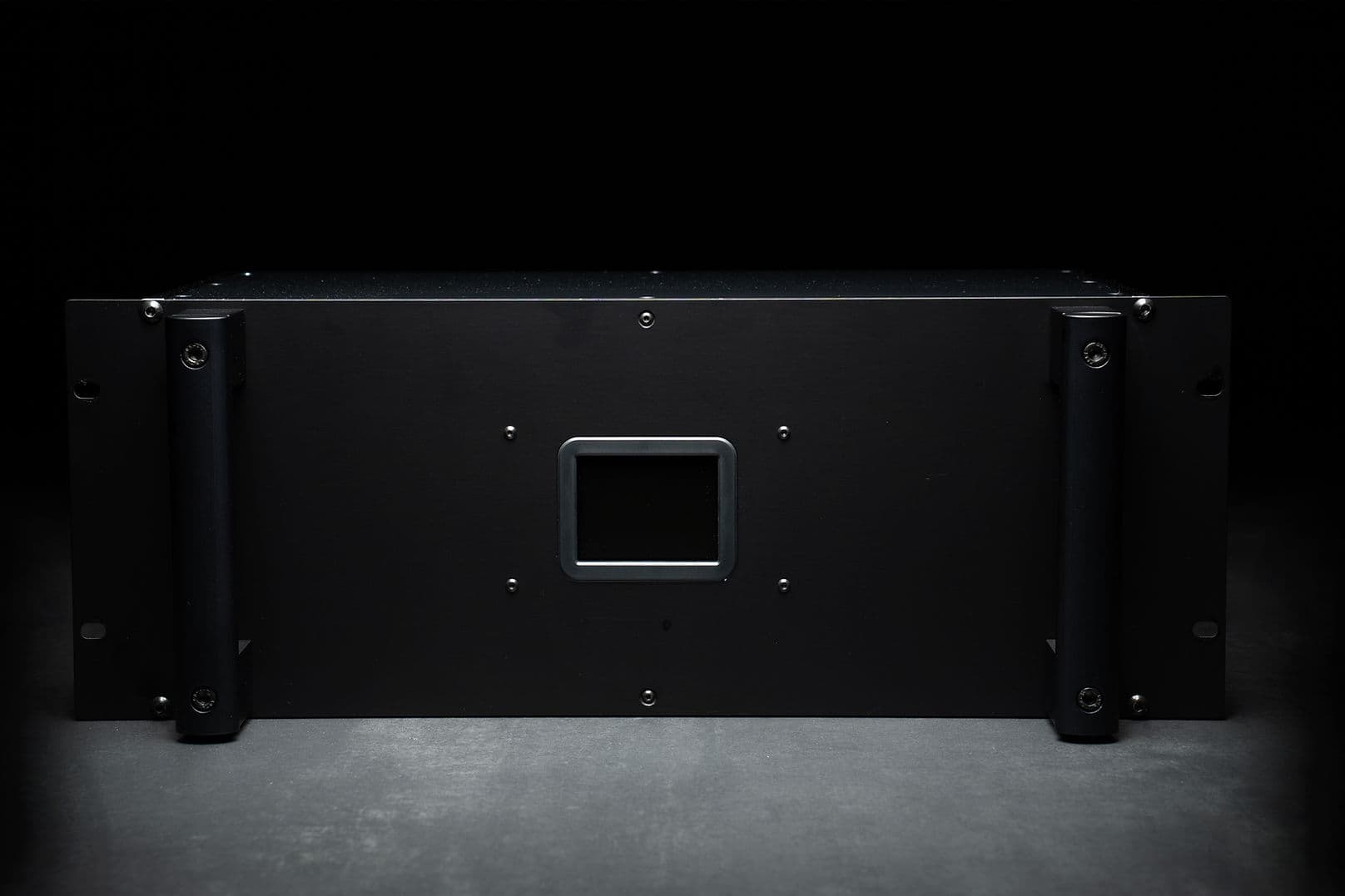

The proTEC Switchbox is a professional DMX power switching unit designed for stage and SFX applications with high demands for precision and reliability. The device combines a robust design, fast switching, and full integration into the proTEC safety system. With a power rating of up to 3600 W and minimal response time, the Switchbox is ideal for effects where precise synchronization is critical. Eight independent channels with Neutrik powerCON TRUE1 connectors allow for flexible system configuration. Each channel can operate in NC or NO modes, with the ability to set delay and on-time. The device is fully integrated into the proTEC Safety Architecture, ensuring correct emergency stop logic and stable interaction with other system components. DMX-512, RDM, ArtNet, and sACN protocols are supported. The compact 19-inch chassis is designed for rack mounting and withstands the rigors of touring. The proTEC Switchbox ensures reliable operation in professional shows, concert tours, and complex installations.
