19” Rigger Rack

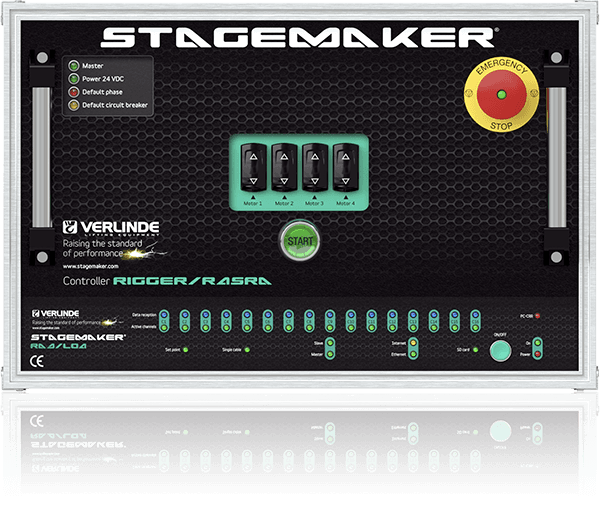

Direct Control Controller This series of 19-inch controllers is designed for our A Stagemaker series. Technical Specifications: Phase detection and automatic phase correction Standard built-in cables for possible remote (wired or wireless) control. Standard built-in Master/Slave function. Power supply: 400/415 V 3PH+N – 50/60 Hz. 32 A 5-pin CE power plug. Multi-pin output, one for every 4 motors. Short-circuit protection Thermal protection per group of 4 motors. Max. power per channel: 1.8 kW / 400 V 3-phase. Available options: Wired remote control: remote for 4-, 8-, and 12-channel controllers (25 m cable). Radio remote control: 32-channel 19" radio receiver and radio remote control for R4SRA, R8SRA, or R12SRA controllers. Load measurement: XLR connector and 2 m cable for integrating the Stagemaker Load Cell system. Flight case: a wide selection of 19” flight cases, available in Premium or Eco versions, can be viewed here.
