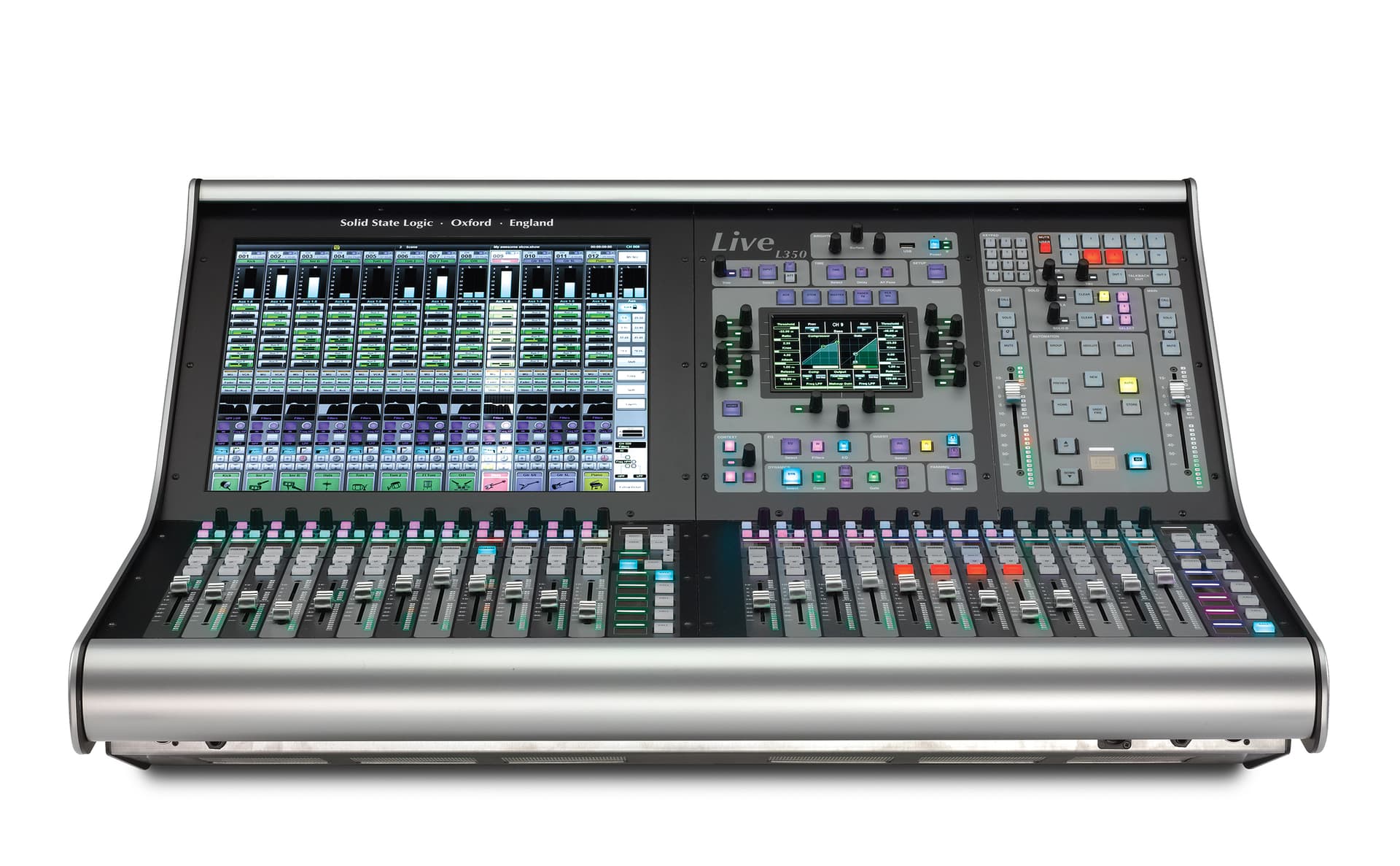

Solid State Logic Mixing Console SSL Live L350 Plus
Technical Specifications
| Features | Up to 600 inputs and 600 outputs |
| Mix paths | 216 fully processed mix paths at 96 kHz |
| Processing technology | SSL Optimal Core Processing (OCP) |
| DSP & processing | Dedicated DSP resources for effects processing |
| Inputs and outputs | Extensive local analogue and digital I/O |
| Connectivity & Interfaces | Standard MADI connectivity |
| Connectivity & Interfaces 2 | Optional Dante, SSL Blacklight II, and SSL X-Light interfaces |
| Immersive audio integration | Immersive audio integration |
| Power supply | Redundant power supply included as standard |
| Software | SSL Live V5.0 software platform |
Video
The SSL Live L350 Plus combines Solid State Logic's renowned audio quality with powerful DSP processing and exceptional routing flexibility, making it ideal for demanding front-of-house and monitor mixing applications.
Built around SSL's next-generation Optimal Core Processing (OCP) technology, the console supports up to 600 inputs and 600 outputs while providing 216 fully processed mix paths at 96 kHz. These paths can be configured as channels, stem groups, aux buses, or masters, allowing engineers to adapt the console to virtually any production workflow.
All 216 mix paths feature full channel processing, while insert effects benefit from dedicated DSP resources that are dynamically allocated to maximize performance and efficiency.

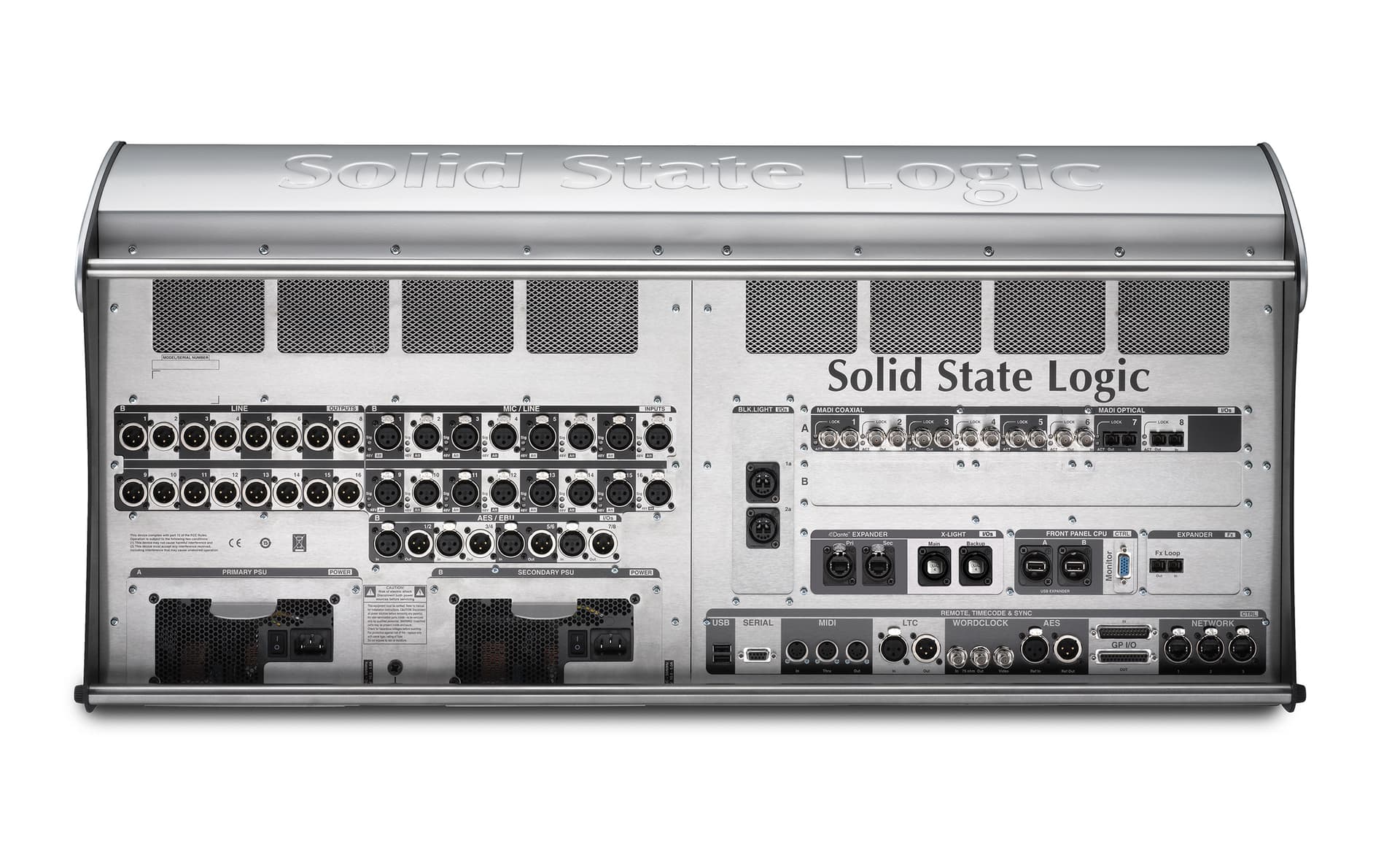

The L350 Plus includes extensive local analogue and digital I/O, including 16 mic/line inputs, 16 line outputs, AES/EBU, MADI, MIDI, LTC, Word Clock, and GP I/O connectivity. Optional Dante, SSL Blacklight II, and SSL X-Light interfaces enable seamless integration with large-scale audio networks.
Running SSL Live V5.0 software, the console supports immersive audio workflows with L-Acoustics L-ISA and Meyer Sound SpaceMap Go integration, enhanced third-party device control, and advanced SSL processing tools.
