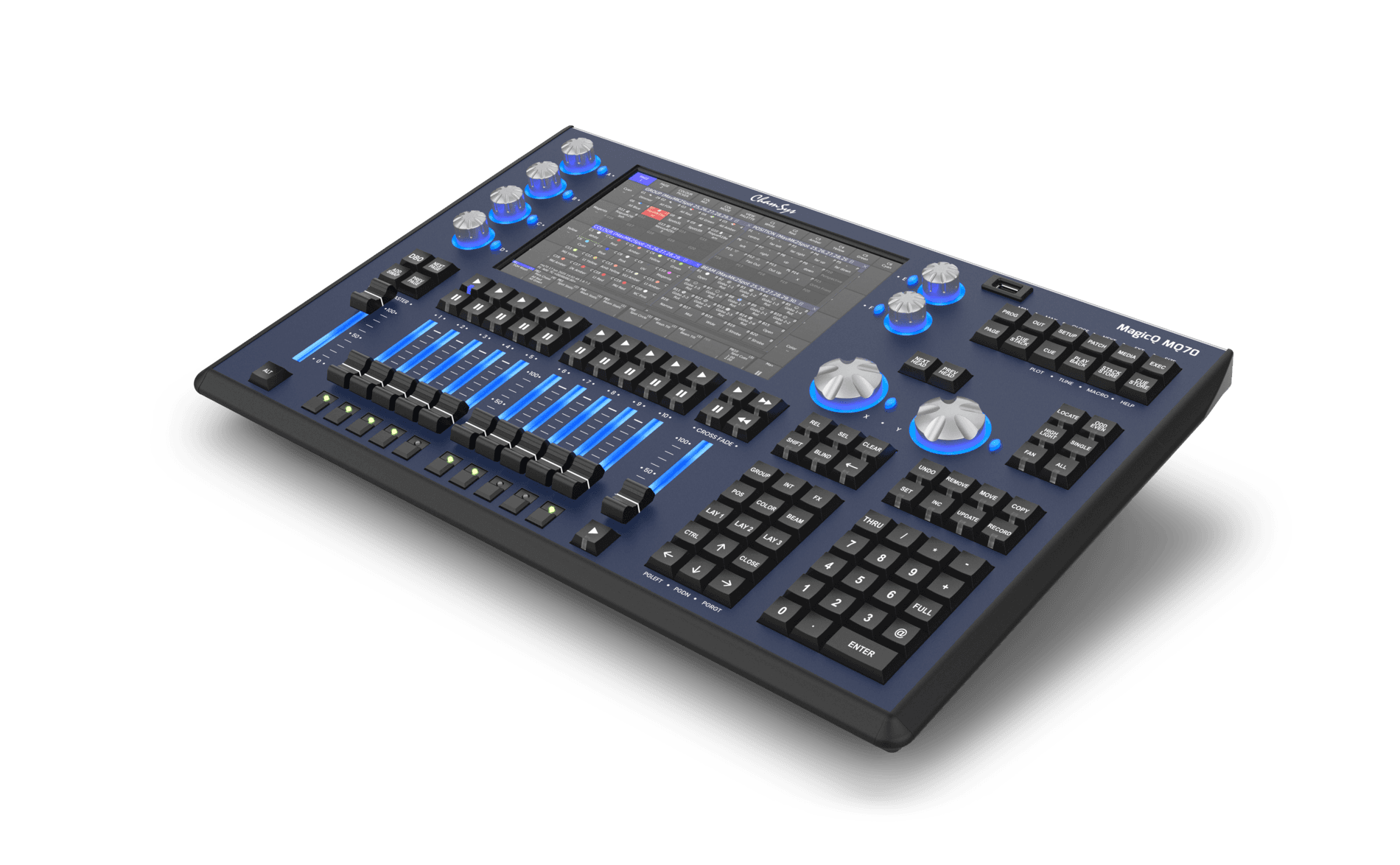

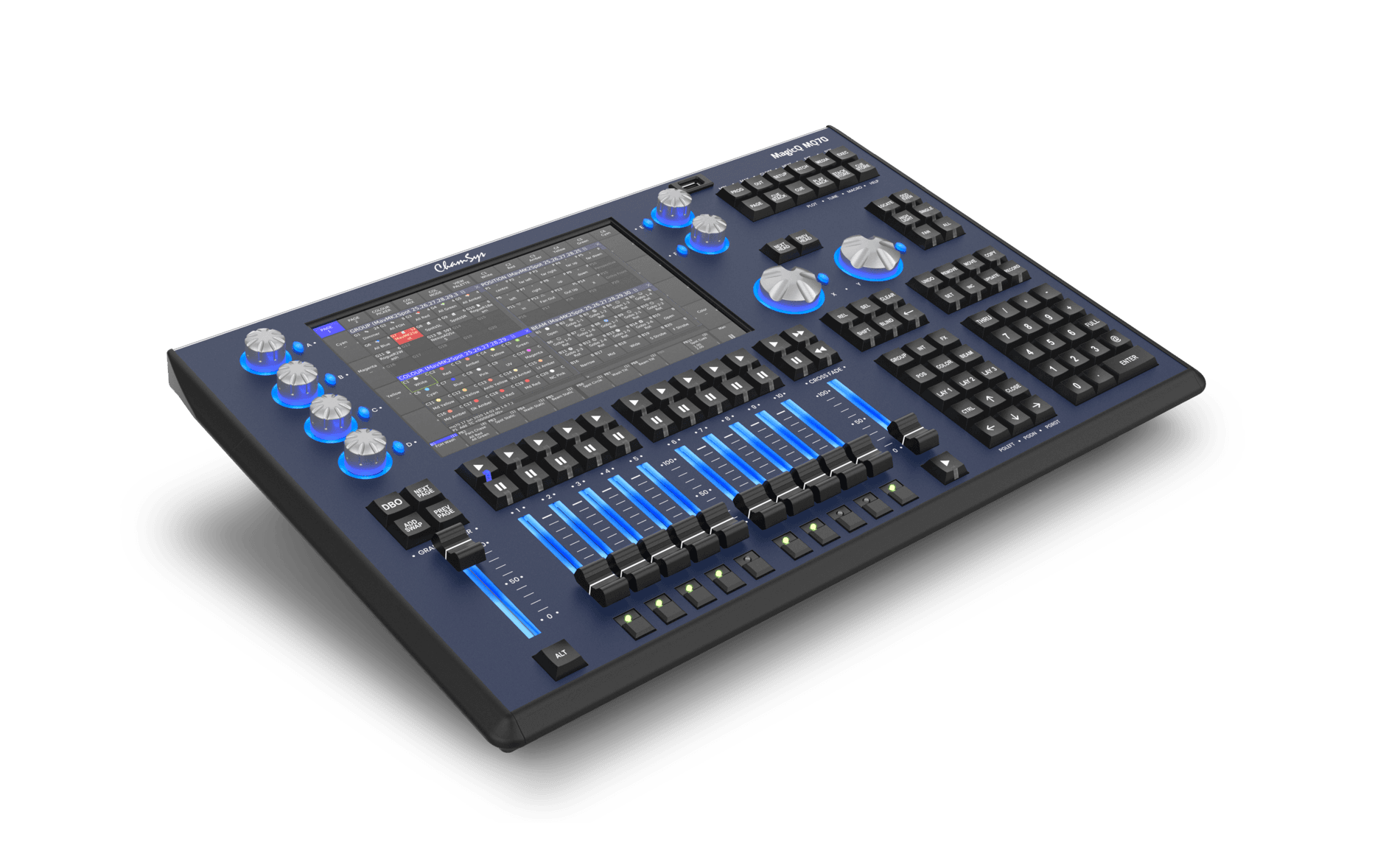

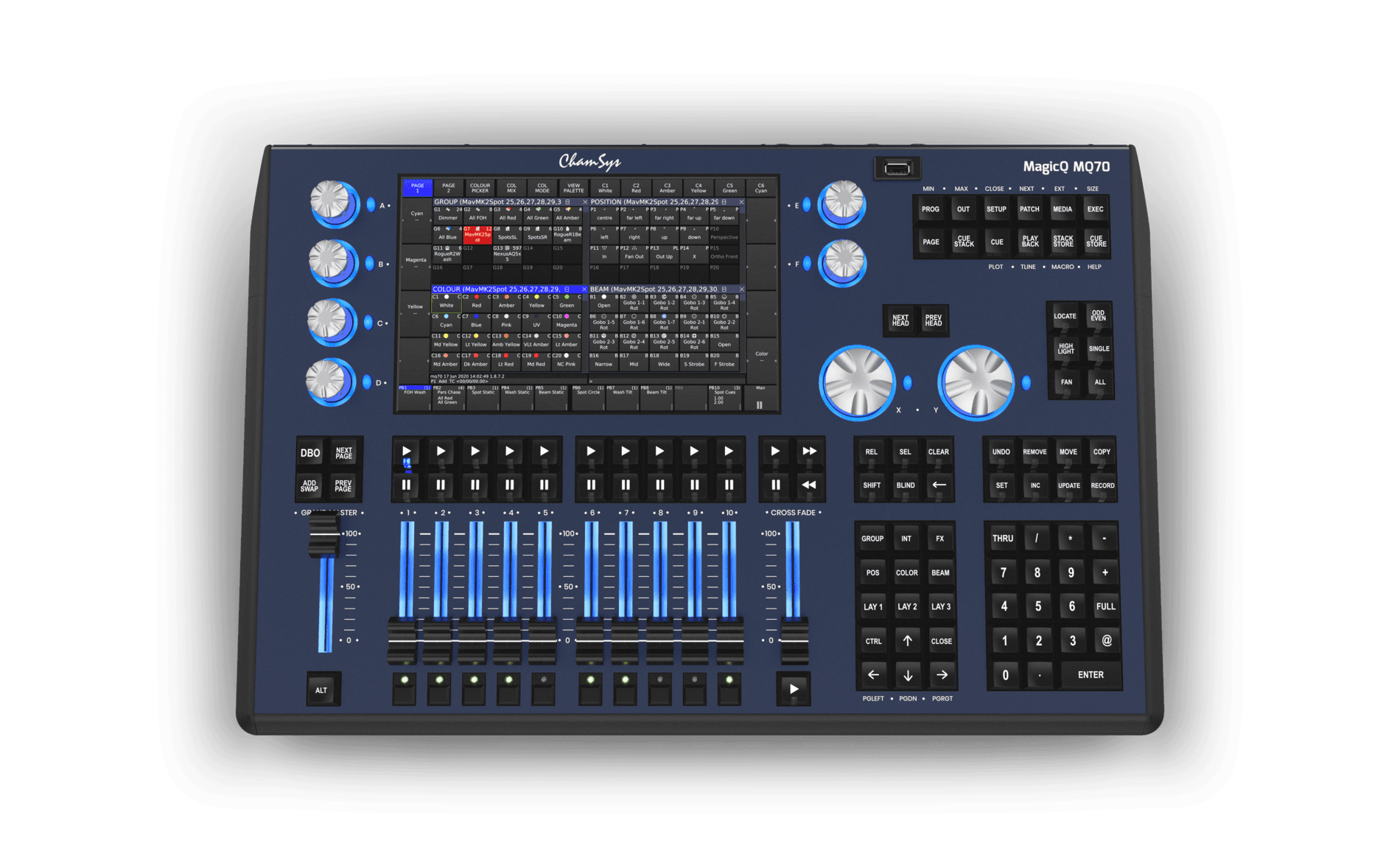

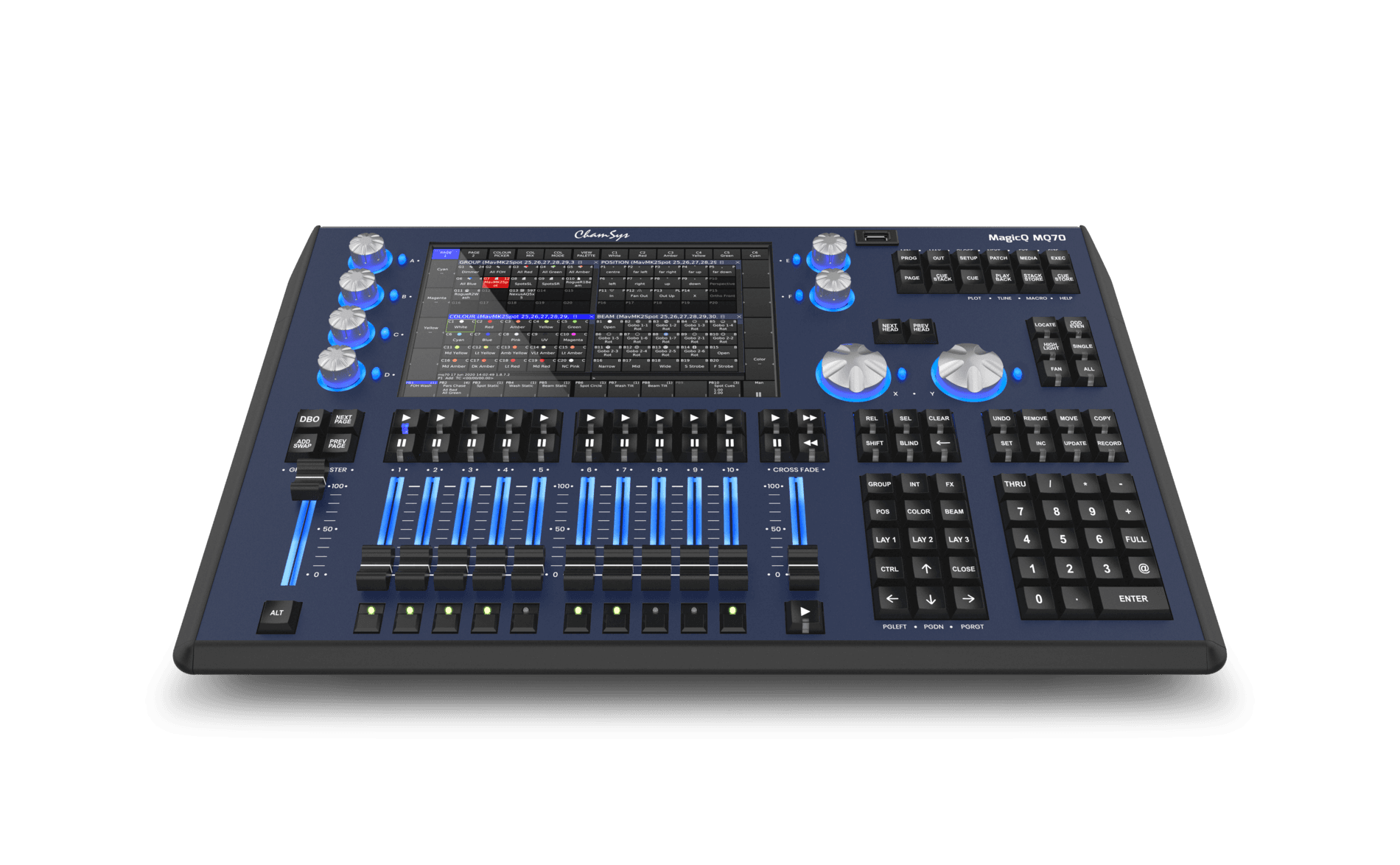

MagicQ MQ70 Compact Console
Hardware Specifications
Parameter | Value |
|---|---|
Number of DMX universes (via Art-Net/sACN/Pathport) | 24 *expandable to 48 |
Direct DMX outputs | 4 |
RDM support | Yes |
Built-in Wi-Fi | Yes |
Playback faders | 10 |
Grand Master fader | 1 |
Crossfade Master fader | 1 |
Attribute encoders | 8 |
Dual Colour illuminated playbacks | Yes |
Illuminated encoders | Yes |

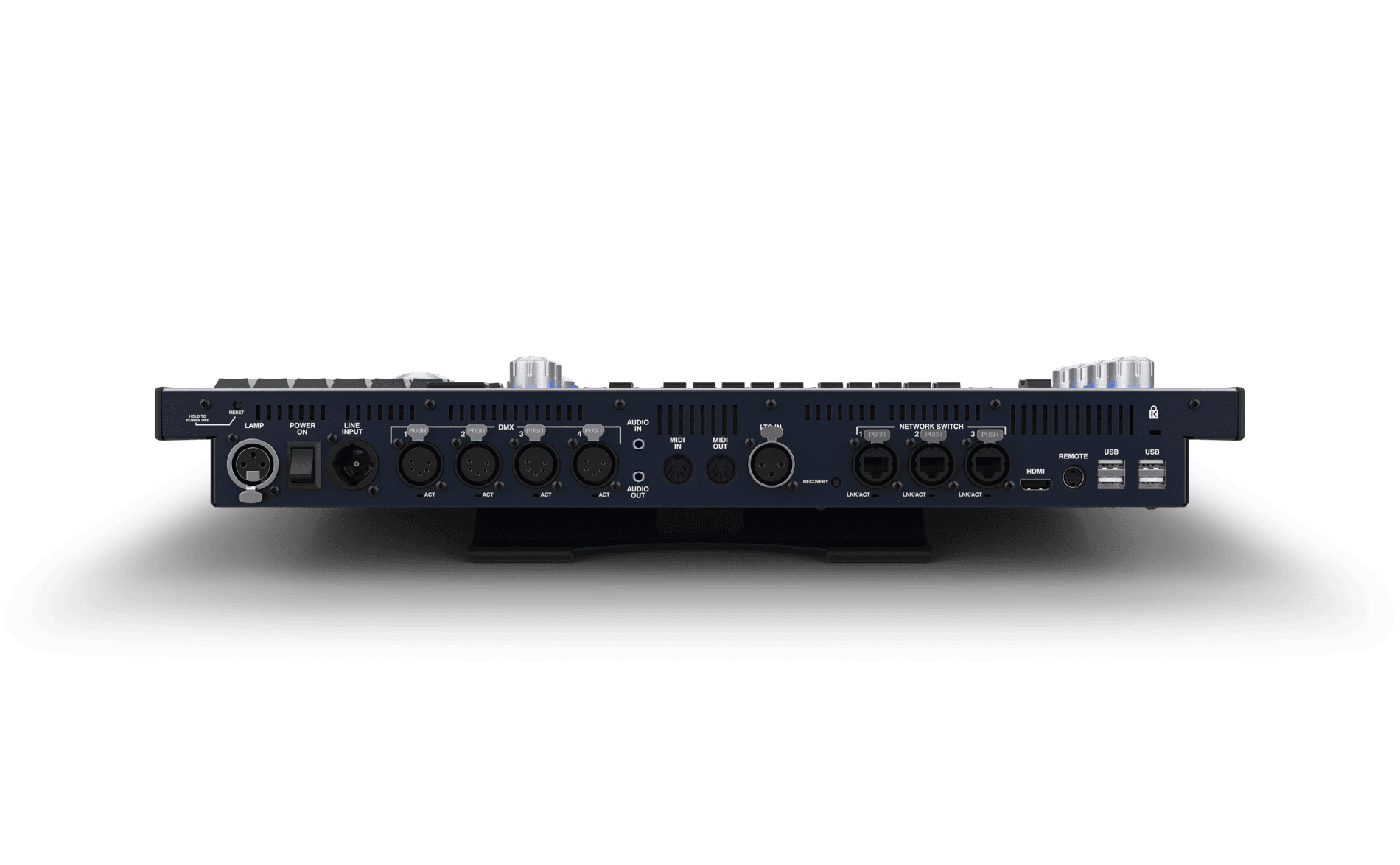

Network ports | 3 |
Built-in 10.1" HD multi-touch display | 1 |
External monitor support (HDMI, up to 1920×1200) | 1 |
USB ports | 5 |
Audio input | 1 channel, 7-band |
Audio output | Yes |
MIDI ports | 1 in, 1 out |
LTC timecode input | 1 |
Remote input port | 1 |
Built-in UPS | Yes, 12V lead-acid battery |
Power input | Neutrik powerCON TRUE1, 110–240 VAC |
Maximum power consumption | 35 W |
Software Specifications
Parameter | Value |
|---|---|
Maximum number of DMX channels | 12288 *expandable to 24576 |
Maximum number of supported fixtures | 12288 *expandable to 24576 |
Maximum number of cues | 5000 |
Maximum number of cue stacks | 2000 |
Maximum number of groups | 5000 |
Maximum number of palettes | 4096 |
Media server layers supported | 50 |
Number of shows | Virtually unlimited |
